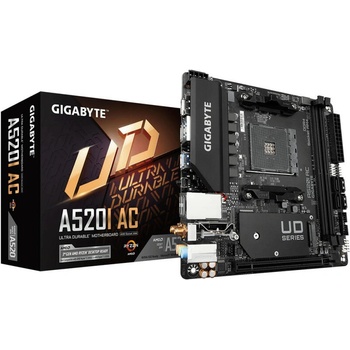

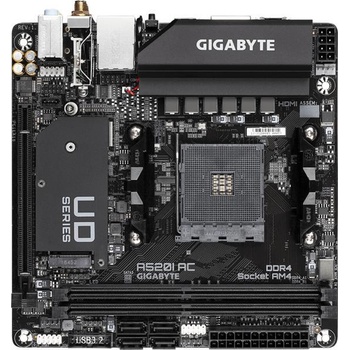

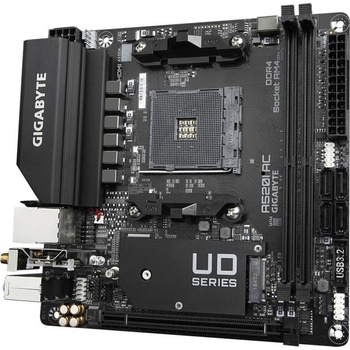

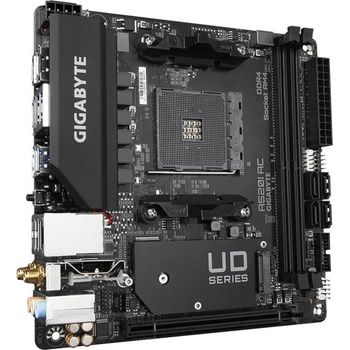

GIGABYTE A520I AC

GIGABYTE A520I AC Socket AM4 AMD A520 DDR4 Micro ITX
id="p4051074"> GIGABYTE A520I AC Socket AM4 AMD A520 DDR4 Micro ITXManufacturer GIGABYTEManufacturer Part No A520I ACProduct Features

• Direct 6 phases digital VRM solution with 55A DrMOS
  The A520I AC motherboard uses a direct 6 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controllers offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance.
• Faster and better coverage with dual-band 802.11ac Wi-Fi and BT4.2 module
  The onboard 802.11ac Wi-Fi module from Intel supports up to 433 Mbps transition speed, 3x faster than 802.11n and also support Bluetooth 4.2. The Ultra Durable antenna supports dual-band 802.11ax/ac 2.4GHz and 5GHz with 4dBi signal gained. It offers better signal strength as compared to the traditional antenna design, and the magnetic base is a great design for signal strength direction and location.
• Smart Fan 5
  With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5, more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
• RGB Fusion 2.0
  With the A520 motherboard, RGB Fusion 2.0 is even better with addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB/addressable LED light strips for their PC build. Already feature-filled with colors and patterns, RGB Fusion 2.0 is now upgraded to improve the addressable LED support. With external addressable LED strips, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

GeneralProduct TypeMotherboard - mini ITXChipset TypeAMD A520Processor SocketSocket AM4Max Processors Qty1Compatible ProcessorsRyzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics)Supported RAMMax Size64 GBTechnologyDDR4Bus Clock2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O. C. ), 3600 MHz (O. C. ), 4000 MHz (O. C. ), 4400 MHz (O. C. ), 4600 MHz (O. C. ), 3200 MHz, 4866 MHz (O. C. ), 5200 MHz (O. C. ), 5100 MHz (O. C. ), 5300 MHz (O. C. )Supported RAM Integrity CheckNon-ECC, ECCRegistered or BufferedUnbufferedFeaturesDual channel memory architectureAudioTypeHD Audio (8-channel)Audio CodecRealtek ALC887Compliant StandardsHigh Definition AudioLANNetwork InterfacesGigabit Ethernet, 802.11a/b/g/n/ac, Bluetooth 4.2Expansion / ConnectivityExpansion Slots1 x CPU
2 x DIMM 288-pin
1 x PCIe 3.0 x16Storage InterfacesSATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10

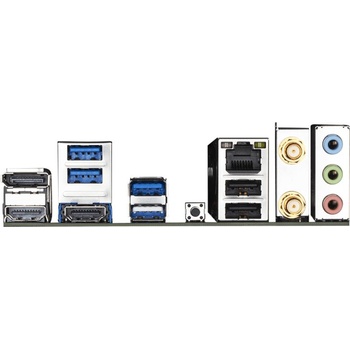

SATA-600 / PCIe 3.0 -connectors: 1 x M. 2Interfaces1 x LAN (Gigabit Ethernet)
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x DisplayPort
2 x HDMI
4 x USB 3.2 Gen 1
2 x USB 2.0Internal Interfaces2 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x audio - header
1 x serial - header
1 x speaker - headerPower Connectors24-pin main power connector, 8-pin ATX12V connectorFeaturesBIOS TypeAMIBIOS FeaturesWfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 supportHardware MonitoringCPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltageHardware FeaturesQ-Flash, On/Off Charge, 6 Phase Power Design, Ultra Durable, Q-Flash Plus, Dr. MOS MOSFET, Game Boost, GIGABYTE Double Locking Bracket, Anti-Sulfur Design, GIGABYTE Smart Fan 5, Solid Pin Power Connectors, RGB FUSION 2.0MiscellaneousSoftware IncludedNorton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth ControlWidth17 cmDepth17 cm Technical data provided by third party. We assume no liability for errors within these data.
