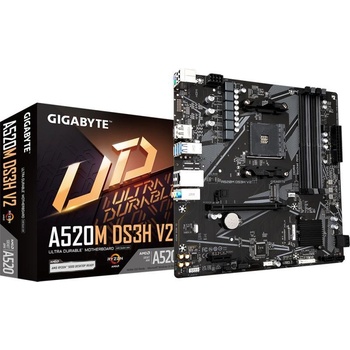

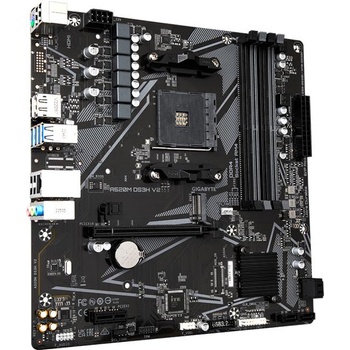

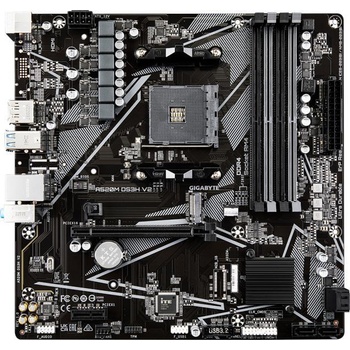

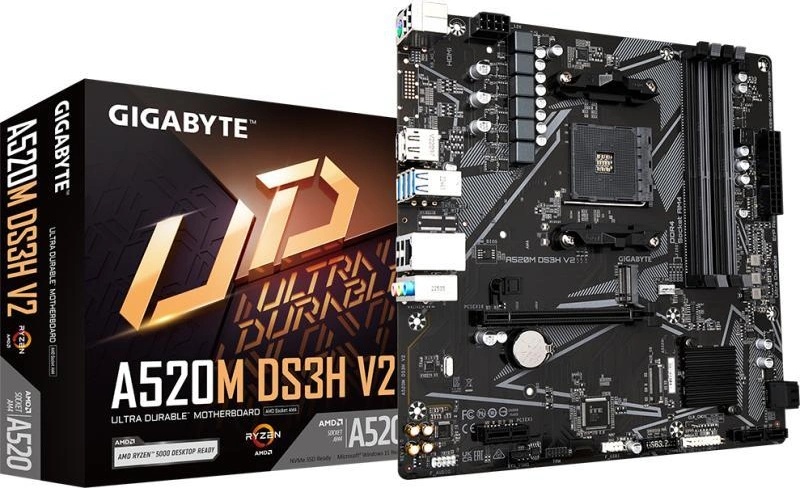

GIGABYTE A520M DS3H V2

Gigabyte A520M DS3H V2 (rev 1.1)

• Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen
•  3000 G-Series Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
• Ultra Durable PCIe 3.0 x16 Slot
• NVMe PCIe 3.0 M. 2 Connectors
• High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
• GbE LAN with Bandwidth Management
• Rear DisplayPort and HDMI for Multi-display Support
• Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Anti-Sulfur Resistors Design

 < /p>

Tech specs:

• CPU
  • AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors

• Memory

  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Support for DDR4 4733(O. C. ) / 4600(O. C. ) / 4400(O. C. ) / 4266(O. C. ) / 4133(O. C. ) / 4000(O. C. ) / 3866(O. C. ) / 3733(O. C. ) / 3600(O. C. ) / 3466(O. C) / 3400(O. C. ) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules



• Onboard Graphics

  Integrated Graphics Processor with AMD Radeon Graphics support:

  • 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

  Maximum shared memory of 16 GB

• Audio
  • Realtek Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel

• LA N
  • Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Expansion Slots

1 x PCI Express x16 slot, integrated in the CPU:

• Supporting PCIe 3.0 x16 mode

1 x PCI Express x1 slot, integrated in the Chipset:

• Supporting PCIe 3.0 x1 mode

• Storage Interface

1 x M. 2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:

• Supporting SATA and PCIe 3.0 x4/x2 SSDs
• 4 x SATA 6Gb/s connectors, integrated in the Chipset:
  • Supporting for RAID 0, RAID 1, and RAID 10

• < p>USB

  CPU :

  • 4 x USB 3.2 Gen 1 ports on the back panel

  Chipset:

  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x system fan header
  • 1 x M. 2 Socket 3 connector
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 1 x USB 2.0/1.1 header
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x Clear CMOS jumper

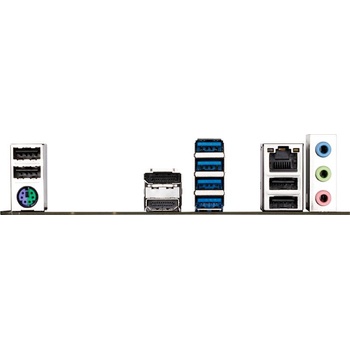

< li>Back Panel Connectors
• 1 x PS/2 keyboard/mouse port
• 1 x DisplayPort
• 1 x HDMI port
• 4 x USB 3.2 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks

I/O Controller
• iTE I/O Controller Chip

• BIOS
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Operating System
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit

< li>Form Factor
• Micro ATX Form Factor; 24.4cm x 24.4cm
