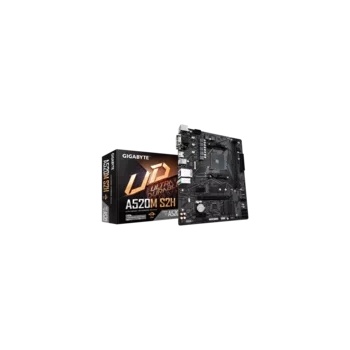

GIGABYTE A520M S2H 1.2

Технически детайли

CPU's supported:AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ 3rd Generation AMD Ryzen with Radeon Graphics processors
Memory type:2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; 3rd Gen AMD Ryzen Processors: Support for DDR4 5100(O. C. ) / 5000(O. C. ) / 4866(O. C. ) / 4600(O. C. ) / 4400(O. C. ) / 4000(O. C. ) / 3600(O. C. ) / 3333(O. C. ) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5100(O. C. ) / 5000(O. C. ) / 4866(O. C. ) / 4600(O. C. ) / 4400(O. C. ) / 4000(O. C. ) / 3600(O. C. ) / 3333(O. C. ) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Chipset:AMD A520
Graphics:Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz; * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time; Maximum shared memory of 16 GB
Expansion Slots:CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16; Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0
Storage:CPU: 1 x M. 2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support); Chipset: 4 x SATA 6Gb/s connectors; Support for RAID 0, RAID 1, and RAID 10
I/O:1 x PS/2 keyboard/mouse port; 1 x D-Sub port; 1 x DVI-D port; 1 x HDMI port; 4 x USB 3.2 Gen 1 ports; 2 x USB 2.0/1.1 ports; 1 x RJ-45 port; 1 x Q-Flash Plus button; 3 x audio jacks
Connectors:1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 1 x addressable LED strip header; 1 x RGB LED strip header; 1 x M. 2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only); 1 x serial port header; 1 x speaker header; 1 x chassis intrusion header; 1 x Clear CMOS jumper
Audio:Realtek® ALC887 codec; High Definition Audio; 2/4/5.1/7.1-channel
LAN:Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
BIOS:1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor:Micro ATX Form Factor; 24.4cm x 20.5cm
OS:Support for Windows 10 64-bit
Сайт на производителя:https://www. gigabyte. com/Motherboard/A520M-S2H-rev-10/sp#sp
Разширено търсене:GB A520 2xDDR4 4xSATA3 RAID HDMI DVI VGA 1xM2 GLAN1xPCIEx16 2xPCIEx1
