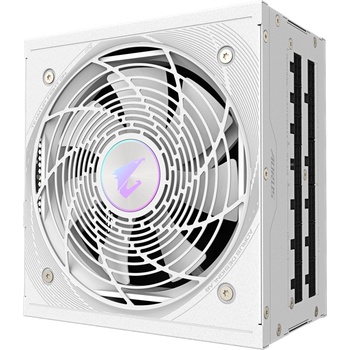

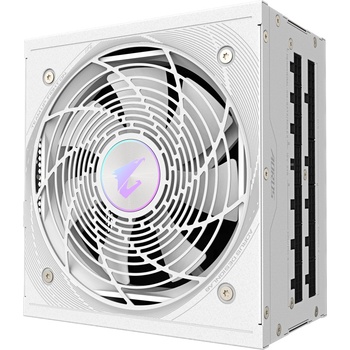

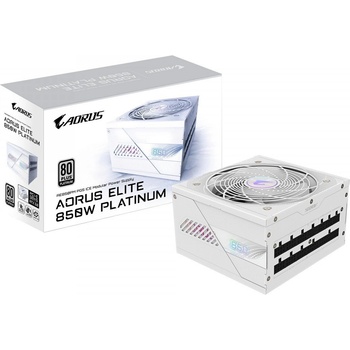

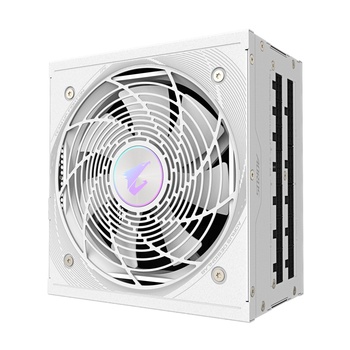

GIGABYTE Aorus Elite P850W 80 PLUS Platinum (GP-AE850PM PG5 ICE)
Препоръчани оферти (3)
GIGABYTE Aorus Elite P850W 80 PLUS Platinum (GP-AE850PM PG5 ICE)
Най-евтини оферти (16)
GIGABYTE Aorus Elite P850W 80 PLUS Platinum (GP-AE850PM PG5 ICE)
Описание на продукта
Параметри на продукта
Параметри на продукта
Описание на продукта
Gigabyte AORUS Elite P850W rev. 1.1
ATX 3.1 and PCIe Gen 5.1 ready
The AE850PM PG5 ICE can sustain power excursions of up to 3 times the GPU power and 2 times the total power. It's fully compliant with the Intel ATX 3.1 standard, supporting up to 200% power excursions and achieving 70% efficiency at low loads. Additionally, the included high-quality, native 16-pin cable ensures compatibility with PCIe Gen 5 graphics cards, delivering up to 600 watts of power.
AORUS magnetic plate design
The unique AORUS magnetic plate can be attached to different sides of the power supply based on the user’s preference, presenting the best visual effect from any angle. Additionally, while the plate being moved on the case, its neon color printing with metallic sheen creates solid and hollow special effects for the AORUS logo.
100% Japanese capacitors
All capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.
120mm smart Fluid Dynamic Bearing (FDB) fan
High-performance Fluid Dynamic Bearing fan uses oil film shock absorption technology to effectively reduce noise, making it quieter than conventional sleeve fan and providing more than twice the lifespan. In addition, the fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 50% load).
Compact design
GIGABYTE's engineering expertise in heat dissipation and material selection has shrunk the length of the power supply to an impressive 140 mm, ensuring compatibility with even space-constrained chassis.
Powerful single +12V rail
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
Protection
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
Specifications
Type
Intel Form Factor ATX 12V v3.1
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
12-6A
Input Frequency
60-50 Hz
Output Capacity
850W
Dimen sions
150 x 140 x 86mm
Fan Type
120mm Fluid Dynamic Bearing (FDB) Fan
80 PLUS
Platinum
Effic iency
92% at typical load
MTBF
>100,000 hours
Protections
O VP/OPP/SCP/UVP/OCP/OTP
Po wer Good Signal
100-150ms
Ho ld Up Time
>16ms
Cable Type
Flat, All white
Connectors
AT X/MB 20+4 Pin x 1 : 650mm*1
CPU/EPS 4+4 Pin x 2 : 700mm*2
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
