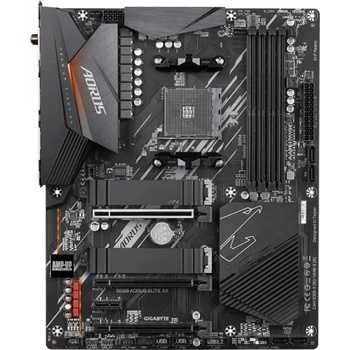

GIGABYTE B550 AORUS ELITE AX

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3
GB B550 AORUS ELITE AX

Graphics: Integrated in the New Generation AMD Ryzen with Radeon Graphics processors: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz; * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB
CPU's supported: AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ 3rd Generation AMD Ryzen with Radeon Graphics processors
Chipset: AMD B550
Expansion Slots: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode; - 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode; * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: - Supporting PCIe 3.0 x2 mode; 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode; 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode
Storage: 1 x M. 2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: - 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs; - 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs; 1 x M. 2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: - Supporting SATA and PCIe 3.0 x4/x2 SSDs; 4 x SATA 6Gb/s connectors, integrated in the Chipset: - Support for RAID 0, RAID 1, and
Memory type: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; 3rd Gen AMD Ryzen Processors: Support for DDR4 4400(O. C. ) / 4000(O. C. ) / 3600(O. C. ) / 3333(O. C. ) /3200/2933/2667/2400/2133 MHz memory modules; 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O. C. ) / 4600(O. C. ) / 4400(O. C. ) / 4000(O. C. ) / 3600(O. C. ) / 3333(O. C. ) /3200/2933/2667/2400/2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
I/O: 1 x DisplayPort; 1 x HDMI port; 2 x SMA antenna connectors (2T2R); 2 x USB 3.2 Gen 2 Type-A ports (red); 4 x USB 3.2 Gen 1 ports; 2 x USB 2.0/1.1 ports; 1 x Q-Flash Plus button; 1 x RJ-45 port; 1 x optical S/PDIF Out connector; 5 x audio jacks
Connectors: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 2 x M. 2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x CPU fan header; 1 x water cooling CPU fan header; 3 x system fan headers; 1 x CPU cooler LED strip/RGB LED strip header; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only); 1 x Clear CMOS jumper
Audio: Realtek® ALC1200 codec; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out
LAN: Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: ATX Form Factor; 30.5cm x 24.4cm
OS: Support for Windows 10 64-bit
Other: Intel® Wi-Fi 6 AX200; WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band; BLUETOOTH 5; Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Warranty: 36 Months



.
