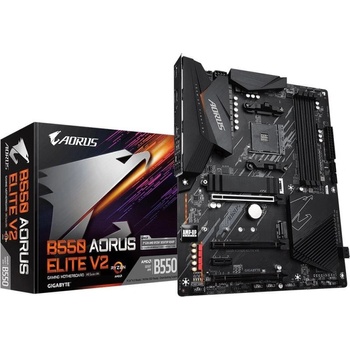

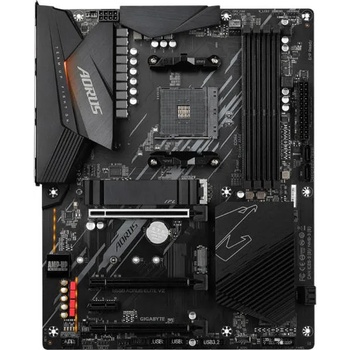

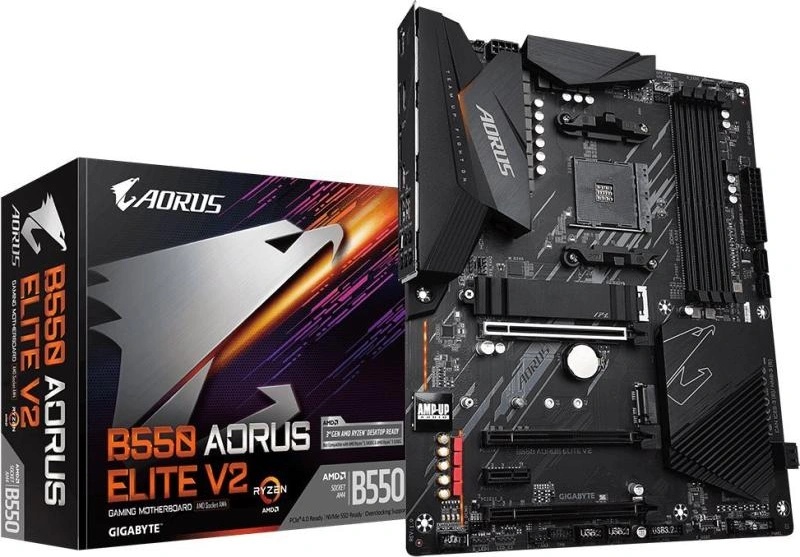

GIGABYTE B550 AORUS ELITE V2

GIGABYTE B550 AORUS ELITE V2 AM4 DDR4 2xM. 2 4xSATA HDMI ATX MB
id="p4034291"> GIGABYTE B550 AORUS ELITE V2 AM4 DDR4 2xM. 2 4xSATA HDMI ATX MBManufacturer GIGABYTEManufacturer Part No B550 AORUS ELITE V2Marketing DescriptionThe falcon with its sharp gaze dominates the darkness of night in the same manner that AORUS lighting illuminates the B550 AORUS Elite V2. Product Features

• Ultimate power design
  B550 AORUS motherboards equip the ultimate power solution which is power balanced. After countless experiments and testing, GIGABYTE presents the unbeatable B550 AORUS motherboards for enthusiasts.
• Unparalleled performance
  GIGABYTE realizes that customers won't stop chasing a better computing performance. GIGABYTE offers plenty of M. 2 storage with thermal guards to ensure unthrottled performance.
• Advanced thermal solution
  Unthrottled performance is guaranteed by the advanced thermal solution which includes enlarged heatsinks, high-quality thermal conductivity pads and thermal guards. B550 motherboards are cool on MOSFETs and M. 2 SSDs even on full loading.
• Powerful connectivity
  B550 AORUS motherboards provide all network, storage, and Wi-Fi connectivity to keep you up to speed.
• Hi-fi audio system
  For enthusiasts, sound quality is essential to the gaming experience. B550 motherboards are equipped with high-quality audio components to provide a superb audio experience.
• Ultra-durable construction
  GIGABYTE is reputable for its product durability and high standard of manufactured process. Needless to say, it uses high-quality components on B550 motherboards.

GeneralProduct TypeMotherboard - ATXChipset TypeAMD B550Processor SocketSocket AM4Max Processors Qty1Compatible ProcessorsRyzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics)Supported RAMMax Size128 GBTechnologyDDR4Bus Clock2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O. C. ), 3600 MHz (O. C. ), 4000 MHz (O. C. ), 4400 MHz (O. C. ), 4600 MHz (O. C. ), 3200 MHz, 4733 MHz (O. C. )Supported RAM Integrity CheckNon-ECC, ECCRegistered or BufferedUnbufferedFeaturesDual channel memory architecture, Intel Extreme Memory Profiles (XMP)GraphicsMax Allocated RAM Size16 GBAudioTypeHD Audio (8-channel)Audio CodecRealtek ALC1200Compliant StandardsHigh Definition AudioLANNetwork Interfaces2.5 Gigabit EthernetExpansion / ConnectivityExpansion Slots1 x CPU
4 x DIMM 288-pin
1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with New Generation Ryzen with Radeon Graphics CPU))
1 x PCIe 3.0 x16 (x1 mode)
1 x PCIe 3.0 x16 (x2 mode)
1 x PCIe 3.0 x1Storage InterfacesSATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 3.0 -connectors: 1 x M. 2
SATA-600 / PCIe 4.0 -connectors: 1 x M. 2Interfaces1 x LAN (2.5Gigabit Ethernet)
1 x TOSLINK
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x HDMI
3 x USB 3.2 Gen 1
2 x USB 2.0
2 x USB 3.2 Gen 2
1 x DisplayPort
1 x audio line-out (rear) - mini-jack
1 x audio line-out (center/subwoofer) - mini-jackInternal Interfaces4 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x audio - header
1 x USB-C Gen 1 - headerPower Connectors24-pin main power connector, 8-pin ATX12V connectorFeaturesBIOS TypeAMIBIOS FeaturesWfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 supportHardware MonitoringCPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage, water cooling flow rateHardware FeaturesQ-Flash, 12+2 Phase Power Design, On/Off Charge, GIGABYTE AMP-UP Audio, 2x Copper PCB, Q-Flash Plus, GIGABYTE Smart Fan 5, Ultra Durable PCIe Armor, M. 2 Thermal Guard, pre-mounted I/O shield, Solid Pin Power Connectors, RGB FUSION 2.0MiscellaneousSoftware IncludedNorton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth ControlWidth30.5 cmDepth24.4 cm Technical data provided by third party. We assume no liability for errors within these data.
