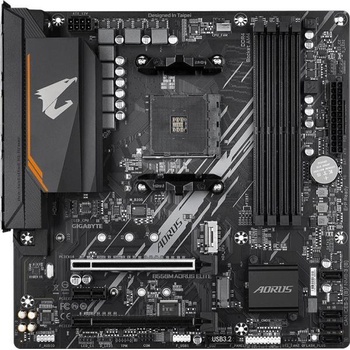

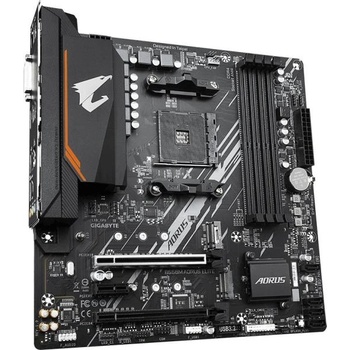

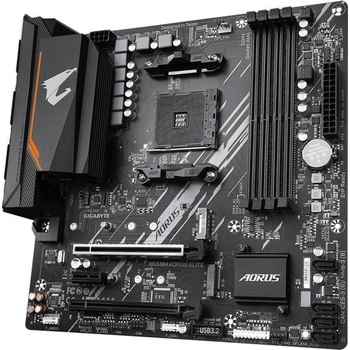

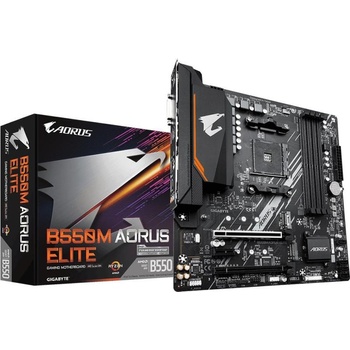

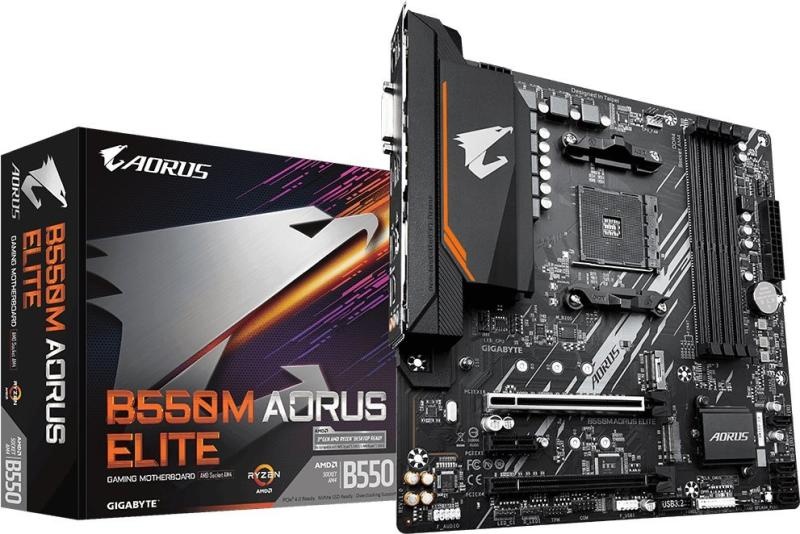

GIGABYTE B550M AORUS ELITE

DescriptionAMD B550 Ultra Durable Motherboard with Pure Digital VRM, PCIe 4.0 x16, Dual PCIe 4.0/3.0 M. 2, Realtek GbE LAN, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus

• Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series
• Dual Channel ECC/Non-ECC DDR4 Unbuffered Memory, 4 DIMMs
• 5+3 phase pure digital VRM with low RDS(on) MOSFETs.
• Ultra-durable x16 slot ready for PCIe 4.0
• Dual ultra-fast NVMe PCIe 4.0/3.0 M. 2 slots
• High-quality audio capacitors and a noise shield ensure the highest sound quality
• Realtek GbE LAN with bandwidth management
• Support HDMI and DVI on the back
• RGB FUSION 2.0 supports addressable LED strips and RGB LED strips
• Smart Fan 5 is equipped with multiple temperature sensors, hybrid fan connectors with FAN STOP function
• Q-Flash Plus Update BIOS without installing CPU, memory or graphics card
• Designing anti-sulphur resistors

Model:B550M Aorus EliteCPU socket:Socket AM4Processor family:AMD RyzenIntegrated CPU:NoChipset manufacturer:AMDChipset type:AMD B550Memory type:DDR4Number of DDR4 slots:4Memory bus frequency:4266 MHz
4400 MHz
4600 MHz
4733 MHz
2667 MHz
2933 MHz
3200 MHz
3400 MHz
3466 MHz
3600 MHz
3733 MHz
3866 MHz
4000 MHz
4133 MHz
2400 MHzMax memory size:128 GBExpansion slots:1 x PCIe 4.0 x 16
1 x PCIe 3.0 x 16Max. number of SATA devices:4Max. number of ATA devices:0RAID:YesDetailed data on disk/drive interfaces:1 x M. 2 (M2B_SB), integrated in the chipset, supporting Socket 3, M Key, 2242/2260/2280 SSDs: Support for SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the chipset:

• Support for RAID 0, RAID 1 and RAID 10

1 x M. 2 (M2A_CPU), integrated into the CPU, supporting Socket 3, M Key, 2242/2260/2280/22110 SSDs:

• AMD Ryzen 5000 series and Ryzen 3000 series processors support SATA and PCIe 4.0 x4/x2 SSDs
• AMD Ryzen Ryzen 5000 G-Series and Ryzen 4000 G-Series processors support SATA and PCIe 3.0 x4/x2 SSDs

Graphics:1 x DVI-D port supporting a maximum resolution of 1920x1200 @ 60Hz

• The DVI-D port does not support D-Sub connection via an adapter.

1 x HDMI port supporting a maximum resolution of 4096x2160 @ 60Hz

• Supports HDMI 2.1, HDCP 2.3 and HDR.

Sound card:

• Realtek audio codec
• Support for High Definition Audio
• Number of audio channels 2/4/5.1/7.1

Network interface:1 x 10/100/1000 Mbit/sNetwork interface:Realtek GbE LAN chip (10/100/1000 Mbit)USB ports at back panel:8USB ports on motherboard:4Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports:4Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports:0FireWire (IEEE 1394):NoCOM connector / port:YesLPT connector / port:NoExternal connectors:1 x PS/2 Keyboard/MouseCombo
4 x USB 2.0
4 x USB 3.0
1 x DVI-D
1 x HDMI
1 x Line In
1 x Line Out
1 x MIC
1 x RJ-45Onboard connectors:1 x Clear CMOS jumper
1 x System panel header
1 x Front panel audio header
1 x Serial port header
1 x TPM header
1 x 8pin 12V power
1 x 24pin ATX zasilanie
2 x M. 2
4 x SATA III 6Gb/s
1 x USB 2.0/1.1 header
1 x USB 3.0 header
1 x Q-Flash Plus button
1 x 4pin CPU fanSpecial functions:

• Support for APP Center
• Support @ BIOS
• EasyTune
• Fast Boot
• ON/OFF Charge support
• RGB Fusion
• Smart Backup
• System Information Viewer
• Support for Q-Flash Plus
• Q Flash support
• Xpress Install support

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form factor:micro ATXDimensions:24.4 x 17.4 cmSupported operating systems:Windows 11
Windows 10Software:

• Norton Internet Security (OEM version)
• LAN bandwidth management software
