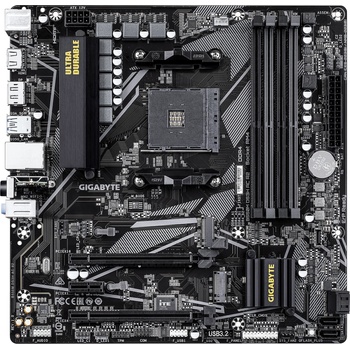

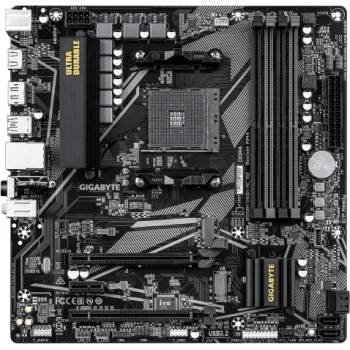

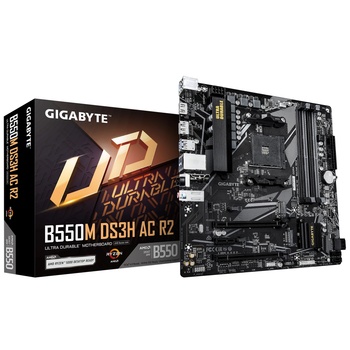

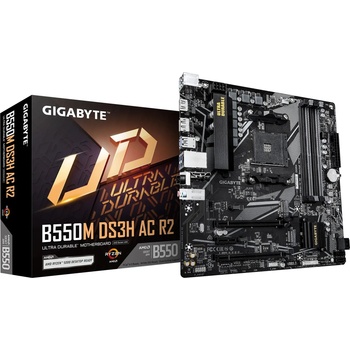

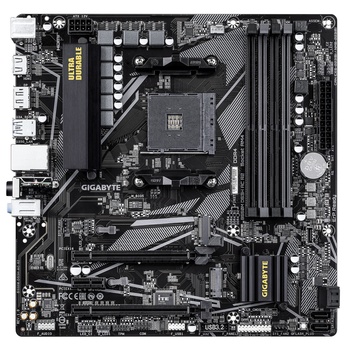

GIGABYTE B550M DS3H AC R2

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3
GB B550M DS3H AC R2 / AM4

USB: CPU:;- 4 x USB 3.2 Gen 1 ports on the back panel;Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 2 x USB 3.2 Gen 1 ports available through the internal USB header;- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Manufacturer: GIGABYTE
Wireless: Realtek® Wi-Fi RTL8821CE;- WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band;- BLUETOOTH 5.0;- Support for 11ac wireless standard
Memory type: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory;Support for DDR4 4733(O. C. ) / 4600(O. C. ) / 4400(O. C. ) / 4266(O. C. ) / 4133(O. C. ) / 4000(O. C. ) / 3866(O. C. ) / 3733(O. C. ) / 3600(O. C. ) / 3466(O. C) / 3400(O. C. ) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules
Features: Support for APP Center;* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. ;- @BIOS;- EasyTune;- RGB Fusion;- Smart Backup;- System Information Viewer;Support for Q-Flash Plus;Support for Q-Flash
CPU's supported: AMD Socket AM4, support for:;AMD Ryzen 5000 G-Series Processors/;AMD Ryzen 5000 Series Processors/;AMD Ryzen 4000 G-Series Processors/;AMD Ryzen 3000 G-Series Processors/;AMD Ryzen 3000 Series Processors;(Go to GIGABYTE's website for the latest CPU support list. )
Chipset: AMD B550
Bluetooth: 5.0
Graphics: Integrated Graphics Processor with AMD Radeon Graphics support:;- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz;* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. ;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version, HDCP 2.3, and HDR. ;** Support for native HDMI 2.1 TMDS compatible ports.
Expansion Slots: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;- AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode;- AMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode;* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. ;Chipset:;- 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4;- 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
Storage: 1 x M. 2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:;- AMD Ryzen 5000/ 3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs;- AMD Ryzen 5000 G/ 4000 G/ 3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs;1 x M. 2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs;4 x SATA 6Gb/s connectors;RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices;RAID 0, RAID 1, and RAID 10 support for SATA storage devices
I/O: iTE® I/O Controller Chip
Connectors: 1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;2 x system fan headers;2 x addressable LED strip headers;2 x RGB LED strip headers;1 x CPU cooler LED strip/RGB LED strip header;2 x M. 2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 1 support;1 x USB 3.2 Gen 1 header;1 x USB 2.0/1.1 header;1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only);1 x serial port header;1 x Clear CMOS jumper;1 x Q-Flash Plus button;Back Panel Connectors;2 x USB 2.0/1.1 ports;1 x PS/2 keyboard/mouse port;1 x HDMI port (Note);1 x DisplayPort (Note);4 x USB 3.2 Gen 1 ports;1 x RJ-45 port;2 x antenna connectors;3 x audio jacks
Audio: Realtek® ALC1220 CODEC;* The back panel line out jack supports DSD audio. ;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN: Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
BIOS: 1 x 128 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
OS: Support for Windows 11 64-bit;Support for Windows 10 64-bit



.
