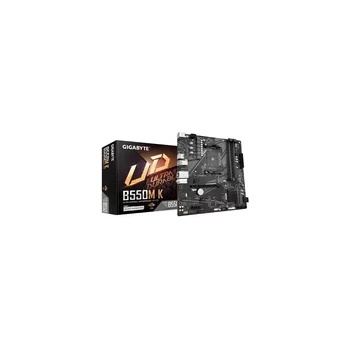

GIGABYTE B550M K 1.1

Технически детайли

CPU's supported:AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
Memory type:4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; Support for DDR4 4733(O. C. ) / 4600(O. C. ) / 4400(O. C. ) / 4266(O. C. ) / 4133(O. C. ) / 4000(O. C. ) / 3866(O. C. ) / 3733(O. C. ) / 3600(O. C. ) / 3466(O. C) / 3400(O. C. ) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*; * ECC memory (ECC mode) support varies by CPU; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Chipset:AMD B550
Graphics:Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz; * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. ; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ; Maximum shared memory of 16 GB
Expansion Slots:1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode; AMD Ryzen 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode; 1 x PCI Express x1 slot, integrated in the Chipset: Supporting PCIe 3.0 x1 mode
Storage:1 x M. 2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs; AMD Ryzen 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs; 1 x M. 2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs: Supporting PCIe 3.0 x2 SSDs; 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10
I/O:1 x PS/2 keyboard/mouse port; 1 x DisplayPort; 1 x HDMI port; 4 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
Connectors:1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x system fan header; 2 x M. 2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 1 x USB 2.0/1.1 header; 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only); 1 x Clear CMOS jumper
Audio:Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
LAN:Realtek® GbE LAN chip (1 Gbps/100 Mbps)
BIOS:1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor:Micro ATX Form Factor; 24.4cm x 24.4cm
OS:Support for Windows 11 64-bit; Support for Windows 10 64-bit
Сайт на производителя:https://www. gigabyte. com/Motherboard/B550M-K-rev-10/sp#sp
Разширено търсене:GB B550 4xDDR4 4xSATA3 RAID HDMI DP2xM2 GLAN1xPCIEx16 1xPCIEx1
