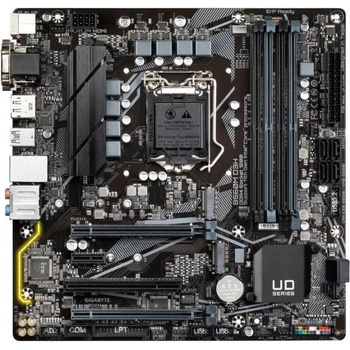

GIGABYTE B560M D3H

Допълнителни снимки на продукта:

Снимка 1
GB B560M D3H /LGA1200

Graphics: Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz(Note); 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz; * The DVI-D port does not support D-Sub connection by adapter. ; 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz; * Support for HDMI 1.4 version and HDCP 2.3. ; 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version and HDCP 2.3; (Graphics specifications may vary depending on CPU support. ); Support for up to 3 displays at the same time
CPU's supported: 11th Generation Intel® Core i9 processors / Intel® Core i7 processors / Intel® Core i5 processors; 10th Generation Intel® Core i9 processors / Intel® Core i7 processors / Intel® Core i5 processors / Intel® Core i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*; * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. ; L3 cache varies with CPU
Chipset: Intel® B560 Express Chipset
Expansion Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16); * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. ; (The PCIEX16 slot conforms to PCI Express 4.0 standard. )(Note); 1 x PCI Express x16 slot, running at x4 (PCIEX4); 1 x PCI Express x1 slot (PCIEX1); (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard. ); 1 x PCI slot
Storage: CPU: 1 x M. 2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)(Note); (Note) Supported by 11th Generation processors only. ; Chipset: 1 x M. 2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2P_SB); 6 x SATA 6Gb/s connectors; * Refer to "1-7 Internal Connectors, " for the installation notices for the M. 2 and SATA connectors. ; Intel® Optane Memory Ready
Memory type: 11th Generation Intel® Core i9/i7/i5 processors: Support for DDR4 5333(O. C. ) / DDR4 5133(O. C. ) / DDR4 5000(O. C. ) / 4933(O. C. ) / 4800(O. C. ) / 4700(O. C. ) / 4600(O. C. ) / 4500(O. C. ) / 4400(O. C. ) / 4300(O. C. ) / 4266(O. C. ) / 4133(O. C. ) / 4000(O. C. ) / 3866(O. C. ) / 3800(O. C. ) / 3733(O. C. ) / 3666(O. C. ) / 3600(O. C. ) / 3466(O. C. ) / 3400(O. C. ) / 3333(O. C. ) / 3300(O. C. ) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz; 10th Generation Intel® Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules; 10th Generation Intel® Core i5/i3 /Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules; 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
I/O: 1 x PS/2 keyboard/mouse port; 1 x D-Sub port; 1 x DVI-D port; 1 x DisplayPort; 1 x HDMI port; 1 x USB Type-C® port, with USB 3.2 Gen 1 support; 3 x USB 3.2 Gen 1 ports; 2 x USB 2.0/1.1 ports; 1 x RJ-45 port; 6 x audio jacks
Connectors: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 3 x system fan headers; 1 x addressable LED strip header; 1 x RGB LED strip header; 6 x SATA 6Gb/s connectors; 2 x M. 2 Socket 3 connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 2 x Thunderbolt add-in card connectors; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only); 1 x serial port header; 1 x parallel port header; 1 x Clear CMOS jumper; 1 x Q-Flash Plus button
Audio: Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
LAN: Intel® GbE LAN chip (1000 Mbit/100 Mbit)
BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
OS: Support for Windows 10 64-bit
Warranty: 36 Months



.
