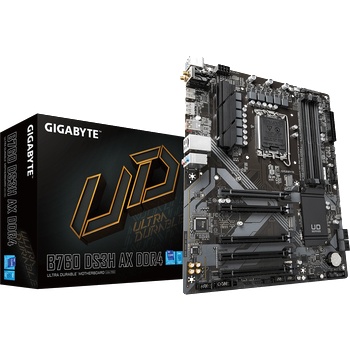

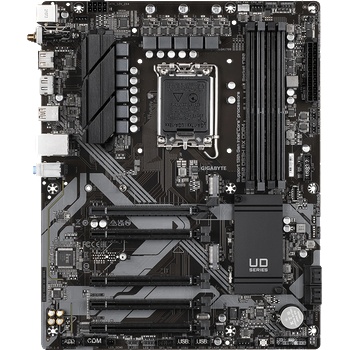

GIGABYTE B760 DS3H AX DDR4 1.2

Manufacturer GIGABYTEWireless AMD Wi-Fi 6E RZ608 (MT7921K) (PCB rev. 1.0);-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;-LUETOOTH 5.2;-Support for 11ax 80MHz wireless standard;Intel® Wi-Fi 6E AX210 (PCB rev. 1.1);-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;-BLUETOOTH 5.3;-Support for 11ax 160MHz wireless standard;Intel® Wi-Fi 6E AX211 (PCB rev. 1.2);-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;-BLUETOOTH 5.3;-Support for 11ax 160MHz wireless standard;Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.3);-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;-BLUETOOTH 5.3;-Support for 11ax 160MHz wireless standardMemory type Support for DDR4 5333(O. C. )/ 5133(O. C. )/ 5000(O. C. )/ 4933(O. C. )/ 4800(O. C. )/ 4700(O. C. )/ 4600(O. C. )/ 4500(O. C. )/ 4400(O. C. )/ 4300(O. C. )/ 4266(O. C. )/ 4133(O. C. )/ 4000(O. C. )/ 3866(O. C. )/ 3800(O. C. )/ 3733(O. C. )/ 3666(O. C. )/ 3600(O. C. )/ 3466(O. C. )/ 3400(O. C. )/ 3333(O. C. )/ 3300(O. C. )/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules;4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modulesFeatures Support for GIGABYTE Control Center (GCC);* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. ;Support for Q-Flash;Support for Q-Flash PlusCPUs supported LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium® Gold and Celeron® Processors;L3 cache varies with CPUInterface Chipset;-1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support;-1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;-1 x USB 3.2 Gen 2 Type-A port (red) on the back panel;-2 x USB 3.2 Gen 1 ports available through the internal USB header;-4 x USB 2.0/1.1 ports on the back panel;Chipset+2 USB 2.0 Hubs;-4 x USB 2.0/1.1 ports available through the internal USB headersChipset Intel® B760 Express ChipsetGraphics Integrated Graphics Processor-Intel® HD Graphics support;-1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3. ;** Support native HDMI 2.1 TMDS compatible ports. ;-1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz;* Support for DisplayPort 1.2 version and HDCP 2.3Expansion Slots CPU;-1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16);* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. ;Chipset;-4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5)Storage CPU;-1 x M. 2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU);Chipset;-1 x M. 2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB);-4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devicesI/O iTE® I/O Controller ChipConnectors Internal I/O Connectors;-1 x 24-pin ATX main power connector;-1 x 8-pin ATX 12V power connector;-1 x CPU fan header;-1 x CPU fan/water cooling pump header;-3 x system fan headers;-1 x system fan/water cooling pump header;-2 x addressable LED strip headers;-2 x RGB LED strip headers;-2 x M. 2 Socket 3 connectors;-4 x SATA 6Gb/s connectors;-1 x front panel header;-1 x front panel audio header;-1 x S/PDIF Out header;-1 x USB Type-C® header, with USB 3.2 Gen 1 support;-1 x USB 3.2 Gen 1 header;-2 x USB 2.0/1.1 headers;-1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only);-1 x serial port header;-1 x Q-Flash Plus button;-1 x reset button;-1 x reset jumper;-1 x Clear CMOS jumper;Back Panel Connectors;-1 x PS/2 keyboard/mouse port;-2 x SMA antenna connectors (2T2R);-1 x USB Type-C® port, with USB 3.2 Gen 2x2 support;-1 x USB 3.2 Gen 2 Type-A port (red);-4 x USB 2.0/1.1 ports;-1 x HDMI port;-1 x DisplayPort;-1 x RJ-45 port;-3 x audio jacksAudio Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. ;Support for S/PDIF OutLAN Realtek® GbE LAN chip (1 Gbps/100 Mbps)BIOS 1 x 128 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Form Factor ATX Form Factor; 30.5cm x 24.4cmOS Support for Windows 11 64-bit;Support for Windows 10 64-bitWarranty 36 Months
