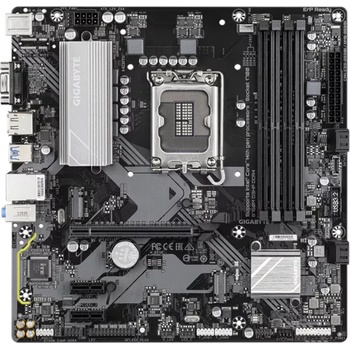

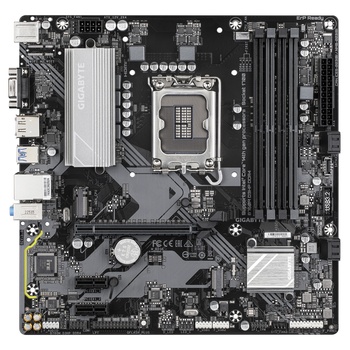

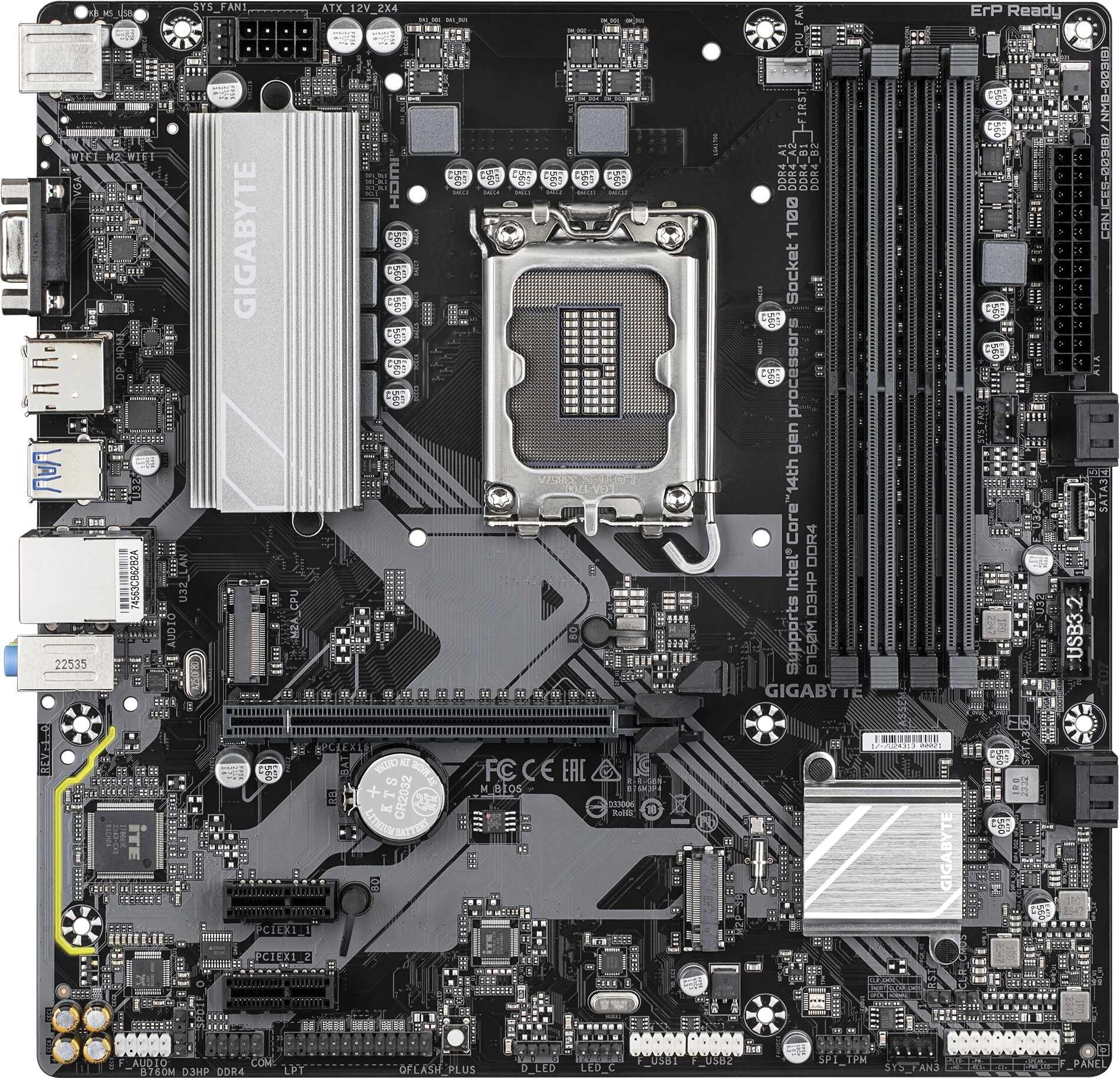

GIGABYTE B760M D3HP DDR4

Технически детайли

Manufacturer:GIGABYTE
Memory type:Support for DDR4 5333(O. C. )/ 5133(O. C. )/ 5000(O. C. )/ 4933(O. C. )/ 4800(O. C. )/ 4700(O. C. )/ 4600(O. C. )/ 4500(O. C. )/ 4400(O. C. )/ 4300(O. C. )/ 4266(O. C. )/ 4133(O. C. )/ 4000(O. C. )/ 3866(O. C. )/ 3800(O. C. )/ 3733(O. C. )/ 3666(O. C. )/ 3600(O. C. )/ 3466(O. C. )/ 3400(O. C. )/ 3333(O. C. )/ 3300(O. C. )/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules;4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules;(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information. )
Features:Support for GIGABYTE Control Center (GCC);* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. ;Support for Q-Flash;Support for Q-Flash Plus
CPU's supported:LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium® Gold and Celeron® Processors; L3 cache varies with CPU;(Please refer "CPU Support List" for more information. )
Chipset:Intel® B760 Express Chipset
Graphics:Integrated Graphics Processor-Intel® HD Graphics support;- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3. ;** Support for native HDMI 2.1 TMDS compatible ports. ;- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz;* Support for DisplayPort 1.2 version and HDCP 2.3;(Graphics specifications may vary depending on CPU support. ) Support for up to triple-display at the same time
Expansion Slots:CPU;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16;* The PCIEX16 slot can only support a graphics card or an NVMe SSD. ;Chipset;- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage:CPU;- 1 x M. 2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU);Chipset;- 1 x M. 2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB);- 4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
I/O:Chipset;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header);- 2 x USB 2.0/1.1 ports on the back panel;Chipset+USB 2.0 Hub;- 4 x USB 2.0/1.1 ports available through the internal USB headers
Connectors:iTE® I/O Controller Chip;1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;3 x system fan headers;1 x addressable LED strip header;1 x RGB LED strip header;2 x M. 2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 1 support;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only);1 x serial port header;1 x parallel port header;1 x S/PDIF Out header;1 x Q-Flash Plus button;1 x reset jumper;1 x Clear CMOS jumper;Back Panel Connectors: 2 x USB 2.0/1.1 ports;1 x PS/2 keyboard/mouse port;1 x D-Sub port;1 x DisplayPort;1 x HDMI port;3 x USB 3.2 Gen 1 ports;1 x RJ-45 port;3 x audio jacks
Audio:Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. ;Support for S/PDIF Out
LAN:Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
BIOS:1 x 128 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor:Micro ATX Form Factor; 24.4cm x 24.4cm
OS:Support for Windows 11 64-bit;Support for Windows 10 64-bit
Сайт на производителя:https://www. gigabyte. com/Motherboard/B760M-D3HP-DDR4#kf
Разширено търсене:GB B760 4xDDR4 4xSATA3 RAID HDMI DP VGA 2xM2 GLAN1xPCIEx16 2xPCIEx1
