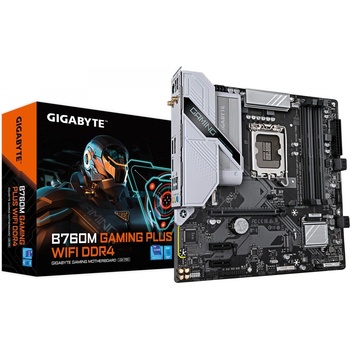

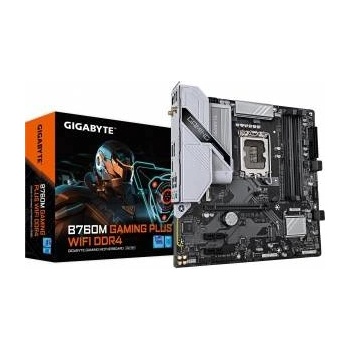

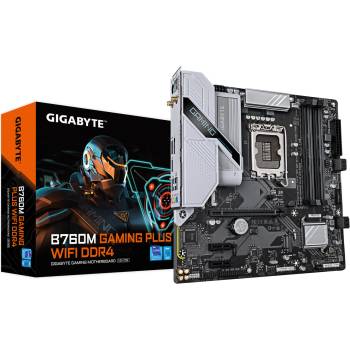

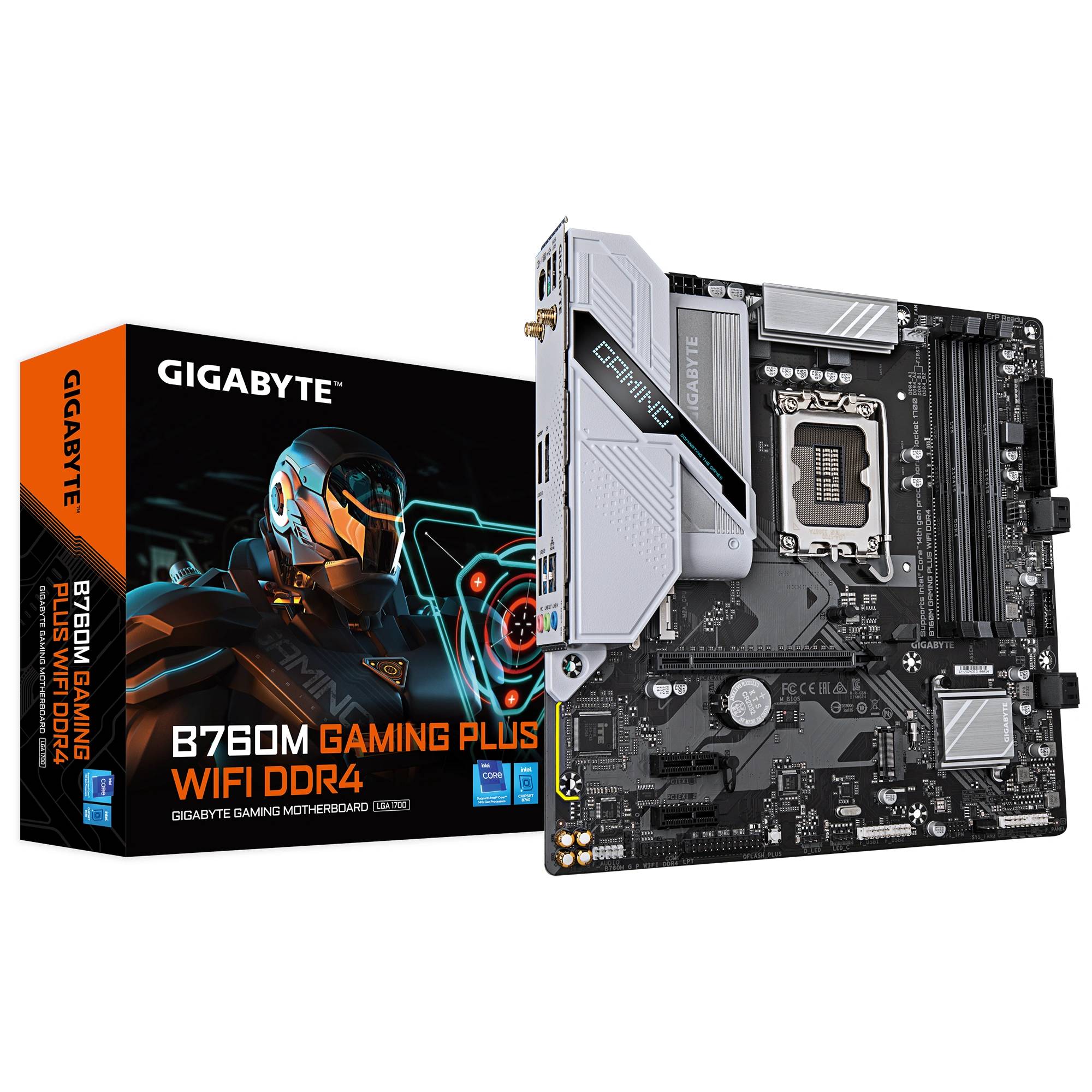

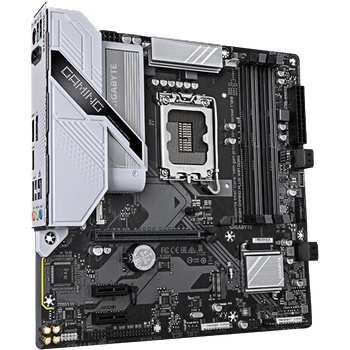

GIGABYTE B760M GAMING PLUS WIFI DDR4

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3
GB B760M GAMING PLUS WIFI DDR4

USB: Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header);- 2 x USB 2.0/1.1 ports on the back panel;Chipset+USB 2.0 Hub:;- 4 x USB 2.0/1.1 ports available through the internal USB headers
Manufacturer: GIGABYTE
Wireless: Realtek® Wi-Fi 6 RTL8851BE;- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 160MHz wireless standard
Memory type: Support for DDR4 5333(O. C. )/ 5133(O. C. )/ 5000(O. C. )/ 4933(O. C. )/ 4800(O. C. )/ 4700(O. C. )/ 4600(O. C. )/ 4500(O. C. )/ 4400(O. C. )/ 4300(O. C. )/ 4266(O. C. )/ 4133(O. C. )/ 4000(O. C. )/ 3866(O. C. )/ 3800(O. C. )/ 3733(O. C. )/ 3666(O. C. )/ 3600(O. C. )/ 3466(O. C. )/ 3400(O. C. )/ 3333(O. C. )/ 3300(O. C. )/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules;4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules
Features: Support for GIGABYTE Control Center (GCC);* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. ;Support for Q-Flash;Support for Q-Flash Plus
CPU's supported: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium® Gold and Celeron® Processors;L3 cache varies with CPU
Chipset: Intel® B760 Express Chipset
Bluetooth: 5.3
Graphics: Integrated Graphics Processor-Intel® HD Graphics support:;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3;** Support for native HDMI 2.1 TMDS compatible ports. ;- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz;* Support for DisplayPort 1.2 version and HDCP 2.3;Support for up to triple-display at the same time
Expansion Slots: CPU:;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16;* The PCIEX16 slot can only support a graphics card or an NVMe SSD. ;Chipset:;- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage: CPU:;- 1 x M. 2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU);Chipset:;- 1 x M. 2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB);- 4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
I/O: iTE® I/O Controller Chip
Connectors: Internal I/O Connectors;1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;3 x system fan headers;1 x addressable LED strip header;1 x RGB LED strip header;2 x M. 2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 1 support;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only);1 x serial port header;1 x parallel port header;1 x S/PDIF Out header;1 x Q-Flash Plus button;1 x reset jumper;1 x Clear CMOS jumper;Back Panel Connectors;2 x USB 2.0/1.1 ports;1 x PS/2 keyboard/mouse port;2 x SMA antenna connectors (2T2R);1 x DisplayPort;1 x HDMI port;3 x USB 3.2 Gen 1 ports;1 x RJ-45 port;3 x audio jacks
Audio: Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;Support for S/PDIF Out
LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
BIOS: 1 x 128 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
OS: Support for Windows 11 64-bit;Support for Windows 10 64-bit



.
