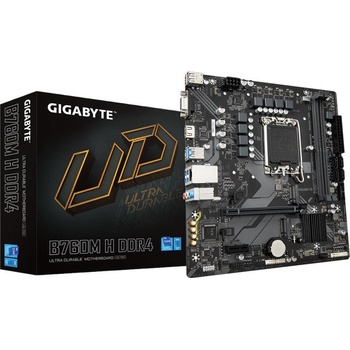

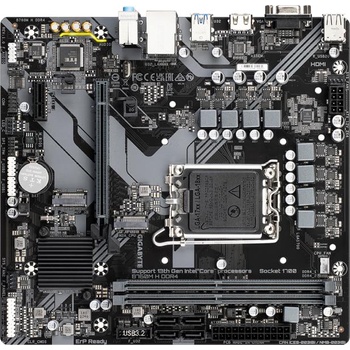

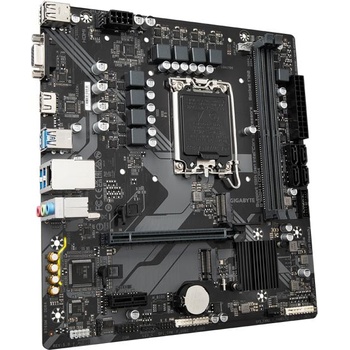

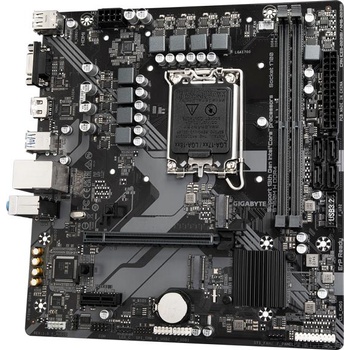

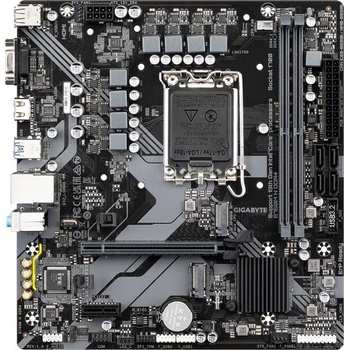

Gigabyte B760M H Intel Socket LGA 1700：Support 13th and 12th Gen Series Processors Unparalleled Performance：Hybrid 6+1+1 Phases Digital VRM Solution Dual Channel DDR4：2*DIMMs...
Дънна платка GIGABYTE B760M H DDR4 (rev. 1.0), LGA1700, 2 x DDR4, Micro ATX (B760M H DDR4 1.0)
Безплатно
Дънна платка Gigabyte B760M H, B760, LGA1700, DDR4, PCI-E 4.0 (HDMI&D-Sub), 2x M. 2, 4x SATA 6Gb/s, 4x USB 3.2 Gen 1, 2x USB 3.2 Gen 1 Type-A, Micro ATX (B760M H DDR4)
Дънна платка Gigabyte B760M H, B760, LGA1700, DDR4, PCI-E 4.0 (HDMI&D-Sub), 2x M. 2, 4x SATA 6Gb/s, 4x USB 3.2 Gen 1, 2x USB 3.2 Gen 1 Type-A, Micro ATX (B760M H DDR4)
Дънна платка GIGABYTE B760M H, socket 1700 (B760M H DDR4)
Описание на продукта
Gigabyte B760M H Intel Socket LGA 1700：Support 13th and 12th Gen Series Processors Unparalleled Performance：Hybrid 6+1+1 Phases Digital VRM Solution Dual Channel DDR4：2*DIMMs...
Intel Socket LGA 1700：Support 13th and 12th Gen Series Processors
Unparalleled Performance：Hybrid 6+1+1 Phases Digital VRM Solution
Dual Channel DDR4：2*DIMMs XMP Memory Module Support
Next Generation Storage：2*PCIe 4.0 x4 M. 2 Connectors
EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
Fast Networks：GbE LAN
Extended Connectivity：HDMI, D-Sub
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
CPU
LGA1700 socket: Support for the 13th and 12thGeneration Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU (Please refer to "CPU Support List" for more information. )
Chipset
Intel B760 Express Chipset
Memory
Supp ort for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information. )
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support. )
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN
Realtek GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots
CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
CPU: - 1 x M. 2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M. 2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset : - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M. 2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper

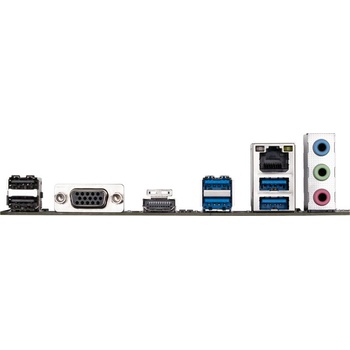

Back Panel Connectors
2 x USB 2.0/1.1 ports 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Operating System
Support for Windows 11 64-bit Support for Windows 10 64-bit
Липсва или е неправилен важен параметър? Предоставената информация е само за ориентиране, затова ви съветваме да проверите дали предлаганият продукт има ключовите параметри от които се нуждаете, преди да купите от магазина по ваш избор. Въпреки че се стремим към максимална точност на информацията, за съжаление не можем винаги да гарантираме 100% съответствие. Цените на продуктите са с включен ДДС.
