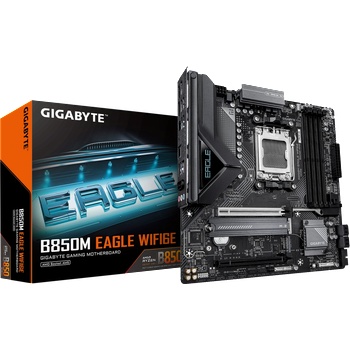

GIGABYTE B850M EAGLE WIFI6E

Технически детайли

USB:CPU:;- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support;- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel;CPU+USB 2.0 Hub:;- 4 x USB 2.0/1.1 ports on the back panel;Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header;- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header);- 4 x USB 2.0/1.1 ports available through the internal USB headers
Manufacturer:GIGABYTE
Wireless:Realtek® Wi-Fi 6E RTL8852CE;- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 160MHz wireless standard
Memory type:Support for DDR5 8200(O. C) / 8000(O. C) / 7950(O. C) / 7900(O. C) / 7800(O. C) / 7600(O. C. ) / 7400(O. C. ) / 7200(O. C. ) / 7000(O. C. ) / 6800(O. C. ) / 6600(O. C. ) / 6400(O. C) / 6200(O. C) / 6000(O. C) / 5800(O. C) / 5600(O. C) / 5200 / 4800 / 4400 MT/s memory modules. ;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Features:Support for GIGABYTE Control Center (GCC);Support for Q-Flash;Support for Q-Flash Plus;Support for Smart Backup
CPU's supported:AMD Socket AM5, support for:;AMD Ryzen 9000 Series Processors/;AMD Ryzen 8000 Series Processors/;AMD Ryzen 7000 Series Processors
Chipset:AMD B850
Bluetooth:5.3
Graphics:Integrated Graphics Processor with AMD Radeon Graphics support:;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3, and HDR. ;** Support for native HDMI 2.1 TMDS compatible ports. ;- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 1.4 version. ;(Graphics specifications may vary depending on CPU support. );Support for up to triple-display at the same time
Expansion Slots:1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode;AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. ;Chipset:;- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Storage:1 x M. 2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs:;AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs;AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs;1 x M. 2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:;AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs;AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs;4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;* RAID 5 is only available on AMD Ryzen 9000 Series Processors. ;RAID 0, RAID 1, and RAID 10 support for SATA storage devices
I/O:iTE® I/O Controller Chip
Connectors:1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;1 x CPU fan/water cooling pump header;1 x system fan header;1 x system fan/water cooling pump header;3 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;4 x SATA 6Gb/s connectors;2 x M. 2 Socket 3 connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 2 support;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);1 x reset button;1 x reset jumper;1 x Clear CMOS jumper;Back Panel Connectors;1 x HDMI port (Note);2 x DisplayPorts (Note);1 x Q-Flash Plus button;1 x PS/2 keyboard/mouse port;1 x USB 3.2 Gen 2 Type-A port (red);1 x USB Type-C® port, with USB 3.2 Gen 2 support;2 x USB 3.2 Gen 1 ports;4 x USB 2.0/1.1 ports;1 x RJ-45 port;2 x antenna connectors (2T2R);3 x audio jacks
Audio:Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel
LAN:Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
BIOS:1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor:Micro ATX Form Factor; 24.4cm x 24.4cm
OS:Support for Windows 11 64-bit;Support for Windows 10 64-bit
Сайт на производителя:https://www. gigabyte. com/Motherboard/B850M-EAGLE-WIFI6E-rev-1 0
