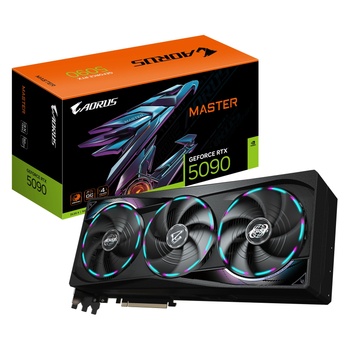

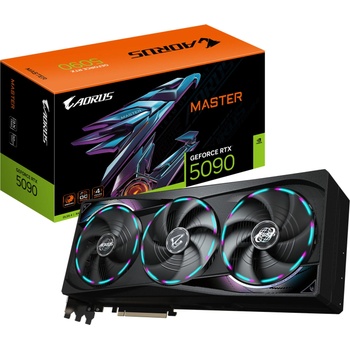

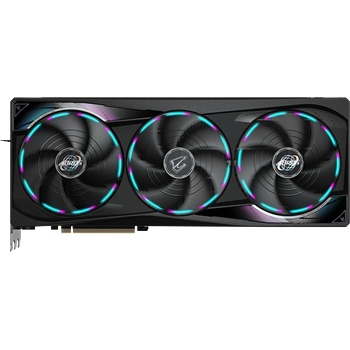

GIGABYTE GeForce RTX 5090 AORUS MASTER 32GB GDDR7 512bit (GV-N5090AORUS M-32GD)

NVIDIA DLSS 4 Supreme Speed. Superior Visuals. Powered by AI.
DLSS is a revolutionary suite of neural rendering technologies that uses AI to boost FPS, reduce latency, and improve image quality. The latest breakthrough, DLSS 4, brings new Multi Frame Generation and enhanced Ray Reconstruction and Super Resolution, powered by GeForce RTX 50 Series GPUs and fifth-generation Tensor Cores. DLSS on GeForce RTX is the best way to play, backed by an NVIDIA AI supercomputer in the cloud constantly improving your PC’s gaming capabilities.

NVIDIA Reflex 2 Compete at Warp Speed:
Reflex technologies optimize the graphics pipeline for ultimate responsiveness, providing faster target acquisition, quicker reaction times, and improved aim precision in competitive games. Reflex 2 introduces Frame Warp, which further reduces latency based on the game’s latest mouse input.

WINDFORCE cooling system:
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features composite metal grease, server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, superconducting heat pipes, a large vapor chamber, 3D active fans, and enhanced screen cooling.

Through-line RGB design:
The through-line RGB lighting outlines a spatial sense that extends seamlessly from the inside out, coupled with a long decorative plate covering that integrates flawlessly with the surrounding design. This enhances visual consistency in appearance, perfectly embodying the core essence of the design.

Reinforced structure:
The reinforced metal backplate, securely fastened to the I/O bracket and combined with a die-cast metal frame, provides exceptional structural integrity.

Specifications

Core Clock
2655 MHz (Reference card : 2407MHz)

CUDA Cores
21760

Memory Clock
28 Gbps

Memory Size
32 GB

Memory Type
GDDR7

Memory Bus
512 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=360 W=150 H=75 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
1000W

Power Connectors
16 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Notes:
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
