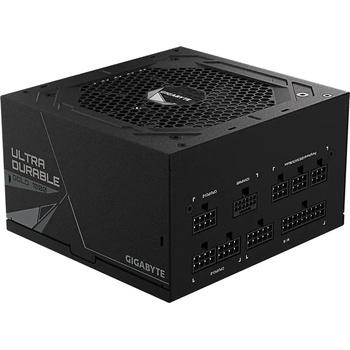

GIGABYTE GP-UD1000GM PG5 1000W 80 PLUS Gold (GP-UD1000GM-PG5)

Gigabyte UD1000GM PG5









Support PCIe Gen 5.0 graphics card

The UD1000GM PCIE 5.0 has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.



FULLY MODULAR DESIGN

All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.

80 PLUS GOLD CERTIFIED

80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.

PLENTIFUL POWER SUPPLY

The +12VHPWR and the +12V can provide a total of 1000W power output. The +12VHPWR can provide up to 600W for the latest PCIe Gen 5.0 graphics card.

Технически спецификации

Model

GP-UD1000GM PG5



Type

Intel Form Factor ATX 12V



PFC

Active PFC (>0.9 typical)



Input Voltage

100-240 Vac (full range)



Input Current

15-6.5A



Input Frequency

60-50 Hz



Output Capacity

1000W



Dimension

150 x 140 x 86 mm



Fan Type

120mm Hydraulic Bearing(HYB)fan



80 PLUS

Gold



Efficiency

90% at typical load



MTBF

>100,000 hours



Protection

OVP/OPP/SCP/UVP/OCP/OTP



Power Good Signal

100-150ms



Hold Up Time

>16ms



Cable Type

Flat, All black



Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1

CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1

PCI-e 16 Pin x 1: 700mm*1

PCI-e 6+2 Pin x 4 : 600mm+150mm*2

SATA x 8 :

600mm+150mm+150mm+150mm*2

4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
