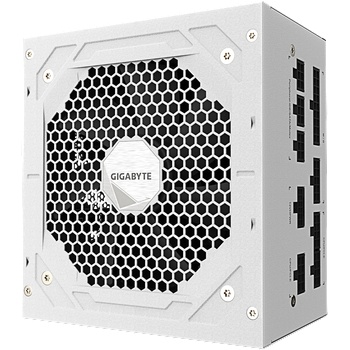

GIGABYTE GP-UD850GM PG5W ICE 850W 80 PLUS Gold (GP-UD850GM PG5W)

Gigabyte UD850GM PG5W

Fully modular design

All the white flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.

Support PCIe Gen 5.0 graphics cards

The UD850GM PCIE 5.0 WHITE EDITION can sustain up to 3x GPU power excursion. It has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.

Enhanced thermal solution

Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.

120mm smart hydraulic bearing (hyb) fan

The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.

Specifications

Type
Intel Form Factor ATX 12V v3.0

PFC
Active PFC (>0.9 typical)

Input Voltage
100-240 Vac (full range)

Input Current
12-6A

Input Frequency
60-50 Hz

Output Capacity
850W

Dimension
150 x 140 x 86 mm

Fan Type
120mm Hydraulic Bearing (HYB) fan

80 PLUS
Gold

Efficiency
90% at typical load

MTBF
>100,000 hours

Protection
OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal
100-150ms

Hold Up Time
>16ms

Cable Type
Flat, All white

Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1

CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1

PCI-e 16 Pin x 1: 700mm*1

PCI-e 6+2 Pin x 4 : 600mm+150mm*2

SATA x 8 :

600mm+150mm+150mm+150mm*2

4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
