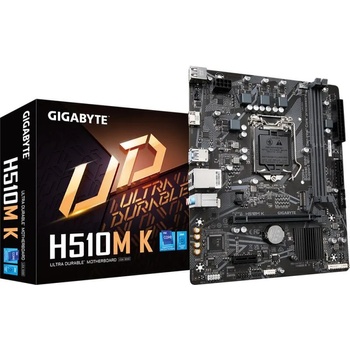

GIGABYTE H510M K

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3 Снимка 4
GB H510M K /LGA1200

Graphics: Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz; * Support for HDMI 1.4 version and HDCP 2.3.
CPU's supported: LGA1200 package: 11th Generation Intel® Core i9 processors/Intel® Core i7 processors/Intel® Core i5 processors; 10th Generation Intel® Core i9 processors/Intel® Core i7 processors/Intel® Core i5 processors/Intel® Core i3 processors/Intel® Pentium® processors/Intel® Celeron® processors; L3 cache varies with CPU
Chipset: Intel® H510 Express Chipset
Expansion Slots: CPU: 1 x PCI Express x16 slot: Supporting PCIe 4.0 and running at x16; (PCIe 4.0 is only supported by 11th Generation processors. ); Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage: Chipset: 1 x M. 2 connector: Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD; 2 x SATA 6Gb/s connectors
Memory type: 11th Generation Intel® Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; 10th Generation Intel® Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MT/s memory modules; 10th Generation Intel® Core i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MT/s memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
I/O: 1 x HDMI port; 2 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
Connectors: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x system fan header; 1 x RGB LED strip header; 1 x M. 2 Socket 3 connector; 2 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 1 x USB 2.0/1.1 header; 1 x serial port header; 1 x Clear CMOS jumper
Audio: Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps)
BIOS: 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: Micro ATX Form Factor; 22.6cm x 18.5cm
OS: Support for Windows 11 64-bit; Support for Windows 10 64-bit
Warranty: 36 Months



.
