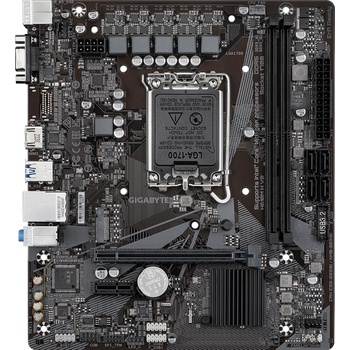

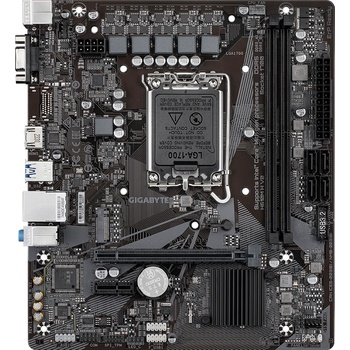

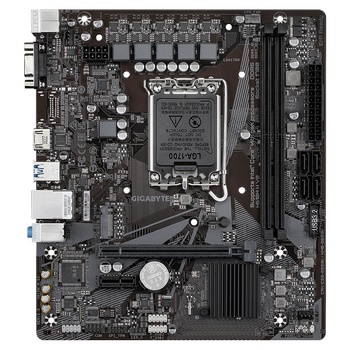

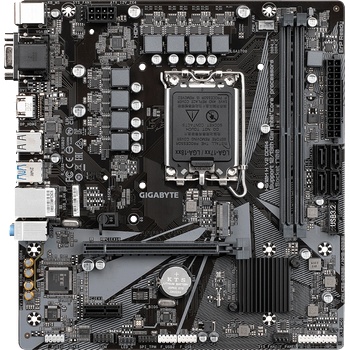

GIGABYTE H610M H V2

CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium® Gold and Celeron® Processors* Please refer to "CPU Support List" for more information. L3 cache varies with CPU

Chipset
Intel® H610 Express Chipset

Memory
14th and 13th Generation Intel® Core i9/i7 Pocessors:- Support for DDR5 5600/5200/4800/4400 MT/s memory modules13th Generation Intel® Core i5/i3 and 12th Generation Intel® Core, Pentium® Gold and Celeron® Processors:- Support for DDR5 4800/4400 MT/s memory modules2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information. )

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support. )

Audio
Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN
Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Expansion Slots
CPU:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Chipset:- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface
Chipset:- 1 x M. 2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSDsupport)- 4 x SATA 6Gb/s connectors

USB
Chipset:- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)- 4 x USB 2.0/1.1 ports on the back panelChipset+USB 2.0 Hub:- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers1 x M. 2 Socket 3 connector4 x SATA 6Gb/s connectors1 x RGB LED strip header1 x front panel header1 x front panel audio header1 x speaker header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)1 x serial port header1 x Clear CMOS jumper1 x chassis intrusion header

Back Panel Connectors
1 x PS/2 keyboard/mouse port1 x D-Sub port1 x HDMI port2 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks

I/O Controller
iTE® I/O Controller Chip

H/W Monitoring
Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

BIOS
1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- @BIOS- EasyTune- Smart Backup- System Information ViewerSupport for Q-Flash

Bundled Software
Norton® Internet Security (OEM version)LAN bandwidth management software

Operating System
Support for Windows 11 64-bitSupport for Windows 10 64-bit

Form Factor
Micro ATX Form Factor; 22.3cm x 19.6cm

Гаранция: 36 месеца
Официална страница на продукта:https://www. gigabyte. com/Motherboard/H610M-H-V2-rev-10
