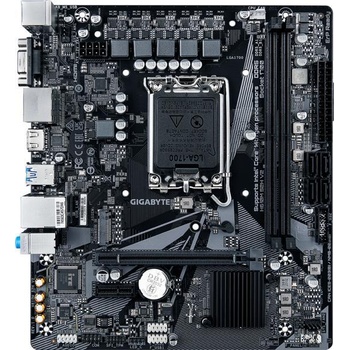

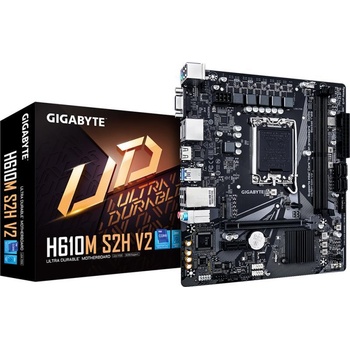

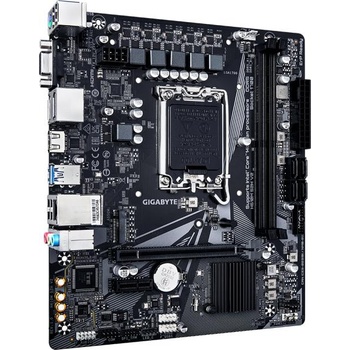

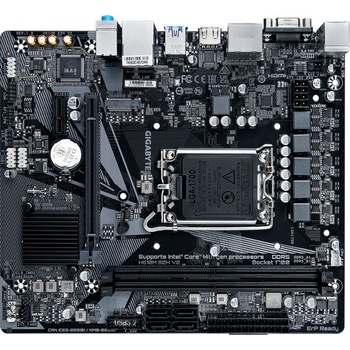

GIGABYTE H610M S2H V2

Onboard Graphics

Integrated Graphics Processor - Intel HD Graphics support

• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support native HDMI 2.1 TMDS compatible ports.



• 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz
  * Support for DisplayPort 1.2 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU support. )

Support for up to triple-display at the same time

• Realtek audio codec
• High Definition Audio
• 2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.


• Real tek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)


Expansion Slots

CPU

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16


Chipset

• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1


Storage Interface

Chipset

• 1 x M. 2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
• 4 x SATA 6Gb/s connectors


USB

Ch ipset

• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• 4 x USB 2.0/1.1 ports on the back panel


Chipset+USB 2.0 Hub

• 4 x USB 2.0/1.1 ports available through the internal USB headers


• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 1 x M. 2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x RGB LED strip header
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper
• 1 x chassis intrusion header


• 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port
• 2 x DisplayPorts
• 1 x HDMI port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks


• iTE I/O Controller Chip


• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


• Support for Windows 11 64-bit
• Support for Windows 10 64-bit


• Micro ATX Form Factor; 22.3cm x 19.6cm
