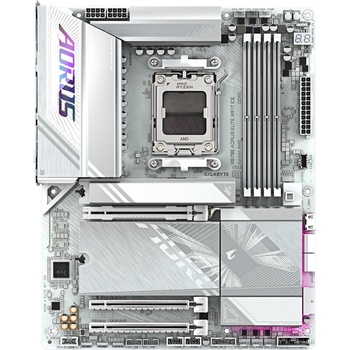

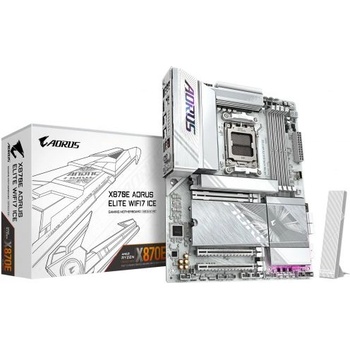

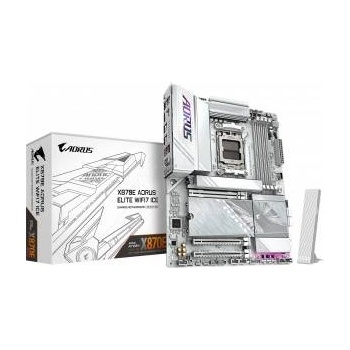

GIGABYTE X870E AORUS ELITE WIFI7 ICE

Gigabyte X870E AORUS ELITE WIFI7 ICE

Key Features

• AMD Socket AM5：Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
• Digital twin 16+2+2 phases VRM solution
• Dual Channel DDR5：4*DIMMs with AMD EXPO Memory Module Support
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus：PCIe and M. 2 slots with Quick Release & Screwless Design
• EZ-Latch Click：M. 2 heatsinks with screwless design
• Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• Ultra-Fast Storage：4*M. 2 slots, including 3* PCIe 5.0 x4
• Efficient Thermal：VRM Thermal Armor Advanced & M. 2 Thermal Guard L
• Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
• Reliable Audio：Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
• Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
• PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card

• CPU

  AMD Socket AM5, support for:
  AMD Ryzen 9000 Series Processors/
  AMD Ryzen 8000 Series Processors/
  AMD Ryzen 7000 Series Processors
  (Go to GIGABYTE's website for the latest CPU support list. )

• Chipset

  AMD X870E

• Memory

  Suppor t for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
  4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules


• Onboard Graphics

  Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4® Controller:
  - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz


  * Support for DisplayPort 1.4 version and HDR.


  Integrated Graphics Processor with AMD Radeon Graphics support:
  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz


  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  ** Support native HDMI 2.1 TMDS compatible ports.


  - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz


  * Support for HDMI 1.4 version


  (Graphics specifications may vary depending on CPU support. )
  Support for up to quad-display at the same time

• Audio

  Realtek
