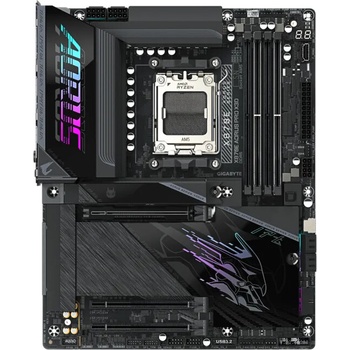

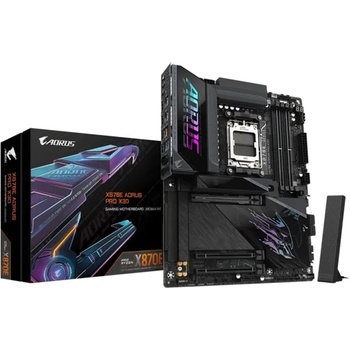

GIGABYTE X870E AORUS PRO X3D

Category
Specification Details

CPU
AMD Socket AM5: Supports AMD Ryzen 9000, 8000, and 7000 Series Processors

Chipset
AMD X870E

Memory
4 x DDR5 DIMM sockets (Up to 256 GB / 64 GB per DIMM) Supports DDR5 9000(O. C. ) down to 4800 MT/s Dual channel architecture; Support for AMD EXPO and Intel® XMP modules

Onboard Graphics
2 x USB4® Type-C® (DisplayPort 1.4, Max 3840x2160@240 Hz, HDR) 1 x HDMI 2.1 (Max 4096x2160@60 Hz, HDR) 1 x Front HDMI 1.4 (Max 1920x1080@30 Hz)

Audio
Realtek® ALC1220 CODEC; High Definition Audio; 2/4/5.1/7.1-channel; S/PDIF Out support

LAN
Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Wireless
Qualcomm® Wi-Fi 7 QCNCM865 (2.4/5/6 GHz, 320MHz standard); Bluetooth 5.4

Expansion Slots
1 x PCIe 5.0 x16 (Supports PCIe 5.0 x16 with Ryzen 9000/7000; PCIe 4.0 x8/x4 with Ryzen 8000) 1 x PCIe 4.0 x16 (runs at x4) 1 x PCIe 3.0 x16 (runs at x2)

Storage
2 x M. 2 PCIe 5.0 x4/x2 (M2A_CPU, M2B_CPU*) 2 x M. 2 PCIe 4.0 x4/x2 (M2C_SB, M2D_SB) 4 x SATA 6Gb/s connectors RAID 0, 1, 5, 10 support for NVMe (RAID 5 requires Ryzen 9000); RAID 0, 1, 10 for SATA

USB (Rear)
2 x USB4® Type-C® 2 x USB 3.2 Gen 2 Type-C® 5 x USB 3.2 Gen 2 Type-A (Red) 3 x USB 3.2 Gen 1 Type-A

USB (Internal)
1 x USB 3.2 Gen 2x2 Type-C® (Supports 65W PD 3.0/QC 4+ fast charging) 4 x USB 3.2 Gen 1 (2 headers) 4 x USB 2.0/1.1 (2 headers)

Internal Connectors
1 x 24-pin main power, 2 x 8-pin 12V power, 1 x PCIe power Headers: 1 x CPU fan, 1 x CPU fan/pump, 4 x system fan, 2 x system fan/pump LED: 3 x Addressable RGB Gen2, 1 x RGB strip Sensors: 1 x Noise detection, 2 x Temperature sensors

Back Panel Buttons
Power, Reset, Clear CMOS, Q-Flash Plus

H/W Monitoring
Voltage, Temperature, Fan/Pump speed, Water cooling flow rate, Noise detection

Form Factor
ATX Form Factor; 30.5cm x 24.4cm

Гаранция: 36 месеца
