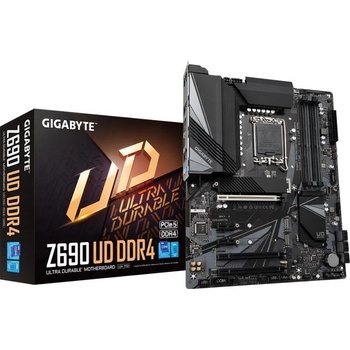

GB Z690 UD DDR4

Graphics: Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3. ; ** Support native HDMI 2.1 TMDS compatible ports. ; 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version and HDCP 2.3
CPU's supported: LGA1700 socket: Support for 12th Generation Intel® Core i9 processors/Intel® Core i7 processors/Intel® Core i5 processors; L3 cache varies with CPU
Chipset: Intel® Z690 Express Chipset
Expansion Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16); * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. ; (The PCIEX16 slot conforms to PCI Express 5.0 standard. ); 1 x PCI Express x16 slot, running at x4 (PCIEX4); 1 x PCI Express x16 slot, running at x1 (PCIEX1_4); 2 x PCI Express x1 slots; (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard. )
Storage: CPU: 1 x M. 2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset: 1 x M. 2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); 1 x M. 2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB); 6 x SATA 6Gb/s connectors; Support for RAID 0, RAID 1, RAID 5, and RAID 10; Intel® Optane Memory Ready
Memory type: Support for DDR4 5333(O. C. )/ DDR4 5133(O. C. )/DDR4 5000(O. C. )/4933(O. C. )/4800(O. C. )/ 4700(O. C. )/ 4600(O. C. )/ 4500(O. C. )/ 4400(O. C. )/ 4300(O. C. )/4266(O. C. ) / 4133(O. C. ) / 4000(O. C. ) / 3866(O. C. ) / 3800(O. C. ) / 3733(O. C. ) / 3666(O. C. ) / 3600(O. C. ) / 3466(O. C. ) / 3400;(O. C. ) / 3333(O. C. ) / 3300(O. C. ) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules; 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory module
I/O: 1 x PS/2 keyboard/mouse port; 1 x DisplayPort; 1 x HDMI port; 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support; 1 x USB 3.2 Gen 2 Type-A port (red); 4 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
Connectors: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x 4-pin ATX 12V power connector; 1 x CPU fan header; 1 x water cooling CPU fan header; 3 x system fan headers; 1 x system fan/water cooling pump header; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 3 x M. 2 Socket 3 connectors; 6 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x serial port header; 2 x Thunderbolt add-in card connectors; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only); 1 x reset button; 1 x reset jumper; 1 x Q-Flash Plus button; 1 x Clear CMOS jumper
Audio: Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out
LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: ATX Form Factor; 30.5cm x 24.4cm
OS: Support for Windows 11 64-bit; Support for Windows 10 64-bit
Warranty: 36 Months



.
