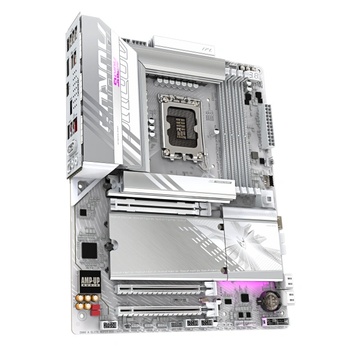

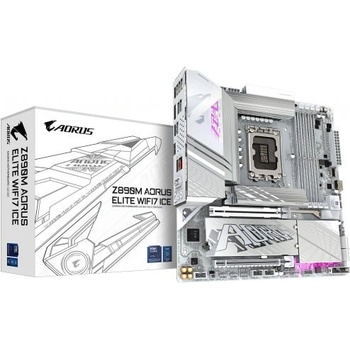

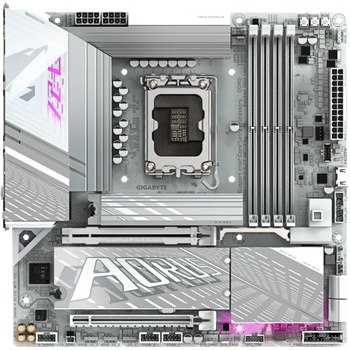

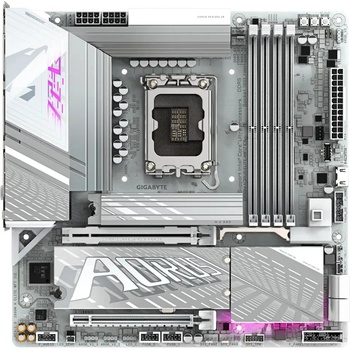

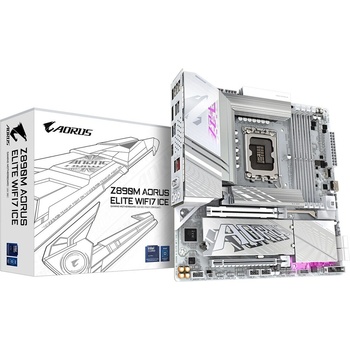

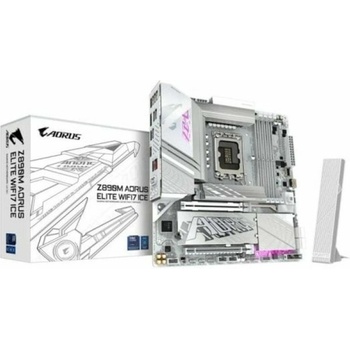

GIGABYTE Z890M AORUS ELITE WIFI7 ICE

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3 Снимка 4
GB Z890M AORUS ELITE WF7 ICE

USB: CPU:;- 1 x USB4® USB Type-C® port on the back panel;Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header;- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel;- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header);Chipset+2 USB 2.0 Hubs:;- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Manufacturer: GIGABYTE
Wireless: MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0);- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.4;- Support for 11be 160MHz wireless standard;Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1);- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.4;- Support for 11be 160MHz wireless standard
Memory type: Support for DDR5 9200(O. C) / 9066(O. C) / 8933(O. C) / 8800(O. C) / 8600(O. C) / 8400(O. C) /8266(O. C) / 8200(O. C) / 8000(O. C) / 7950(O. C) / 7900(O. C) / 7800(O. C) / 7600(O. C. ) / 7400(O. C. ) / 7200(O. C. ) / 7000(O. C. ) / 6800(O. C. ) / 6600(O. C. ) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. ;Support for DDR5 6400/5600 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules;Support CUDIMM memory module
Features: Support for GIGABYTE Control Center (GCC);Support for Q-Flash;Support for Q-Flash Plus;Support for Smart Backup
CPU's supported: LGA1851 socket: Support for Intel® Core Ultra Processors;L3 cache varies with CPU
Chipset: Intel® Z890 Express Chipset
Bluetooth: 5.4
Graphics: Integrated Graphics Processor-Intel® HD Graphics support:;- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 2.1 version;- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 2.1 version;- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz;* Support for HDMI 1.4 version;Support for up to 3 displays at the same time
Expansion Slots: CPU:;- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16);* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. ;Chipset:;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage: CPU:;- 1 x M. 2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU);- 1 x M. 2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU);Chipset:;- 1 x;M. 2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB);- 4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
I/O: iTE® I/O Controller Chip
Connectors: 1 x 24-pin ATX main power connector;2 x 8-pin ATX 12V power connectors;1 x CPU fan header;1 x CPU fan/water cooling pump header;3 x system fan headers;1 x system fan/water cooling pump header;3 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;=3 x M. 2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 2 support;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;2 x Thunderbolt add-in card connectors (For GIGABYTE Thunderbolt 5 add-in card only);1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only);1 x HDMI port(Note);1 x power button;1 x reset button;1 x Q-Flash Plus button;1 x reset jumper;1 x Clear CMOS jumper;Back Panel Connectors;1 x USB4® USB Type-C® port (DisplayPort(Note));1 x USB 3.2 Gen 2 Type-A port (red);4 x USB 3.2 Gen 1 ports;4 x USB 2.0/1.1 ports;2 x antenna connectors (2T2R);1 x DisplayPort (Note);1 x RJ-45 port;1 x optical S/PDIF Out connector;2 x audio jacks
Audio: Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;Support for S/PDIF Out
LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
BIOS: 1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
OS: Support for Windows 11 64-bit



.
