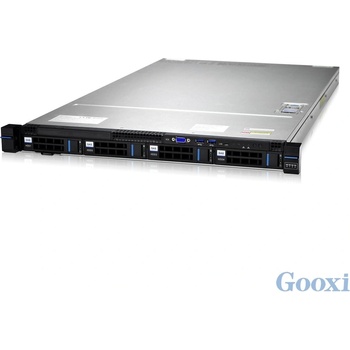

Gooxi SL101-D04R
Gooxi SL101-D04R Model SL101-D04R Storage Drives Support 4x 3.5"SATA3.0 HDDs Dimension 31.8 "*17.1"*1.71" (D*W*H) Processor Up to 1 or 2 Intel Skylake LGA3647...
1119,38 €|2189,32 лв.*
Безплатна доставка, В наличност
Най-евтини оферти (2)
Gooxi SL101-D04R
1U barebone, 2x LGA3647, 24x DDR4 DIMM slots, upto 3TB total RAM, 4x 3.5/2.5" HDD bays (SL101-D04R)
1U barebone, 2x LGA3647, 24x DDR4 DIMM slots, upto 3TB total RAM, 4x 3.5/2.5" HDD bays (SL101-D04R)
Barebone сървър Gooxi SL101-D04R, up to 2x Intel Skylake LGA3647 Xeon, 24x DDR4, без твърд диск, 2x 1GbE LAN, 4x USB 3.0, VGA, без ОС, Platinum Level 550W 1+1 PSU, 1U (SL101-D04R)
Barebone сървър Gooxi SL101-D04R, up to 2x Intel Skylake LGA3647 Xeon, 24x DDR4, без твърд диск, 2x 1GbE LAN, 4x USB 3.0, VGA, без ОС, Platinum Level 550W 1+1 PSU, 1U (SL101-D04R)
Описание на продукта
Gooxi SL101-D04R Model SL101-D04R Storage Drives Support 4x 3.5"SATA3.0 HDDs Dimension 31.8 "*17.1"*1.71" (D*W*H) Processor Up to 1 or 2 Intel Skylake LGA3647...
Параметри на продукта
Производител
Gooxi
Параметри на продукта
Производител
Gooxi
Описание на продукта
Gooxi SL101-D04R
Model
SL101-D04R
Storage Drives
Support 4x 3.5"SATA3.0 HDDs
Dimension
31.8 "*17.1"*1.71" (D*W*H)
Processor
Up to 1 or 2 Intel Skylake LGA3647 Xeon processor with OPA (Omni-Path Architecture) support Maximum TDP 165W as standard and conditional up to 205W
Chipset
Intel® PCH server C621 series chipset
CPU
1 or 2 Intel® Xeon® Scalable Processors with LGA3647 socket, support OPA CPU (Up to TDP 165W, optional TDP 205W)
Memory
DDR4 ECC RDIMMs/LRDIMMs server memory, Memory Frequency 1866/2133/2400/2666MHz
12x DDR4 Channel, each Channel has 2x DIMM, 24x DDR4 slot totally Support 8GB, 16GB, 32GB, 64GB, 128GB, up to 3.0TB (M processors)
Controller
Internal storage controller：PCH support RAID 0/1/10&5, optional 12 Gb RAID 0/1/5/6/10/50/60 (1G/2G/4G cache)
External storage HBA(not RAID)：12 Gb SAS HBA
On-board SSD/SATADOM：1x PCI-e 3.0 x4 M. 2 slot、2x Mini SSD Slot(SATA DOM)
HDD Drive
Front：up to 4x hot-swap 3.5/2.5 SAS/SATA (HDD/SSD)
NVMe：up to 4x hot-swap 2.5"NVMe/SAS/SATA(SSD/HDD)
Power Supply Platinum Level550W hot-swap redundant CRPS, optional support 240 and 338 VDC PSU
I/OFront Port：VGA、2x USB3.0、1x LCD special Mini USB
I/O Rear Port：VGA、2x USB3.0、1x IPMI management port、2x RJ45 port
PCI-e
Max 2x PCI-e 3.0 slot x16;
1x non-standard PCI-e x8 SAS/RAID mezzaninecard + 1x non-standard PCI-ex8 NIC mezzanine car
System Fans
N+1 Hot-swap redundant fan system
Network
Embedded 2x 1GbE port, optional 2x 1Gb/4x
1Gb/ 2x 10Gb/ 4x 10Gb/2x 40Gb NIC card
Security
TPM/TCM(optional)；
Chassis Open Intrusion detection；
Locked Front Panel；
Locked Front Cover Plate；
System
Management
Interface
Embedded iBMC Management Module, support
IPMI、SOL、KVM Over IP、Virtualmedia and etc.
Optional LCD Management Module
OS
Microsoft Windows Server、Red Hat Enterprise
Linux、SUSE Linux Enterprise
Server、CentOS、Citrix Xen Server、Vmware
ESXi、Linux KVM、Ubuntu
Virtualization
VMWare ESXi 6.0
Temperature
Standard Operating Temp：5ºC - 35ºC
( w/o direct sunshine)
Expander Operation Temp：5ºC - 40ºC
(Configuration Match Limited)
Transmit Store Temp：-40ºC - 65ºC
Humidity
Operating Temp 30% - 80%(none-condensation)
Store Temp：5% - 95%( none-condensation)
Model
SL101-D04R
Storage Drives
Support 4x 3.5"SATA3.0 HDDs
Dimension
31.8 "*17.1"*1.71" (D*W*H)
Processor
Up to 1 or 2 Intel Skylake LGA3647 Xeon processor with OPA (Omni-Path Architecture) support Maximum TDP 165W as standard and conditional up to 205W
Chipset
Intel® PCH server C621 series chipset
CPU
1 or 2 Intel® Xeon® Scalable Processors with LGA3647 socket, support OPA CPU (Up to TDP 165W, optional TDP 205W)
Memory
DDR4 ECC RDIMMs/LRDIMMs server memory, Memory Frequency 1866/2133/2400/2666MHz
12x DDR4 Channel, each Channel has 2x DIMM, 24x DDR4 slot totally Support 8GB, 16GB, 32GB, 64GB, 128GB, up to 3.0TB (M processors)
Controller
Internal storage controller：PCH support RAID 0/1/10&5, optional 12 Gb RAID 0/1/5/6/10/50/60 (1G/2G/4G cache)
External storage HBA(not RAID)：12 Gb SAS HBA
On-board SSD/SATADOM：1x PCI-e 3.0 x4 M. 2 slot、2x Mini SSD Slot(SATA DOM)
HDD Drive
Front：up to 4x hot-swap 3.5/2.5 SAS/SATA (HDD/SSD)
NVMe：up to 4x hot-swap 2.5"NVMe/SAS/SATA(SSD/HDD)
Power Supply Platinum Level550W hot-swap redundant CRPS, optional support 240 and 338 VDC PSU
I/OFront Port：VGA、2x USB3.0、1x LCD special Mini USB
I/O Rear Port：VGA、2x USB3.0、1x IPMI management port、2x RJ45 port
PCI-e
Max 2x PCI-e 3.0 slot x16;
1x non-standard PCI-e x8 SAS/RAID mezzaninecard + 1x non-standard PCI-ex8 NIC mezzanine car
System Fans
N+1 Hot-swap redundant fan system
Network
Embedded 2x 1GbE port, optional 2x 1Gb/4x
1Gb/ 2x 10Gb/ 4x 10Gb/2x 40Gb NIC card
Security
TPM/TCM(optional)；
Chassis Open Intrusion detection；
Locked Front Panel；
Locked Front Cover Plate；
System
Management
Interface
Embedded iBMC Management Module, support
IPMI、SOL、KVM Over IP、Virtualmedia and etc.
Optional LCD Management Module
OS
Microsoft Windows Server、Red Hat Enterprise
Linux、SUSE Linux Enterprise
Server、CentOS、Citrix Xen Server、Vmware
ESXi、Linux KVM、Ubuntu
Virtualization
VMWare ESXi 6.0
Temperature
Standard Operating Temp：5ºC - 35ºC
( w/o direct sunshine)
Expander Operation Temp：5ºC - 40ºC
(Configuration Match Limited)
Transmit Store Temp：-40ºC - 65ºC
Humidity
Operating Temp 30% - 80%(none-condensation)
Store Temp：5% - 95%( none-condensation)
