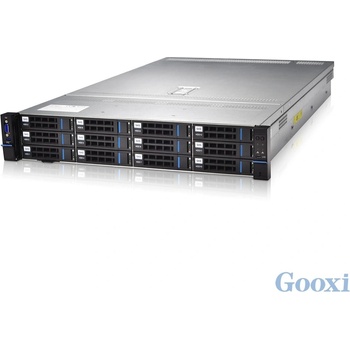

Gooxi SL201-D12RSE

Gooxi SL201-D12RSE

Model
SL201-D12RSE

HDD
Support 12x 3.5"/2.5" SAS3.0/SATA3.0 HDD;
Rear is optional for 4x 3.5"+2x 2.5" or 6x 2.5"hot-swap HDD

Dimension
31.8"*17.5"*3.42" (D*W*H)

Processor
Up to 1 or 2 Intel Skylake LGA3647 Xeon processor with OPA
(Omni-Path Architecture) support
Maximum TDP 165W as standard and conditional up to 205W

Chipset
Intel® PCH server C621 series chipset

CPU
1 or 2 Intel® Xeon® Scalable Processors with LGA3647 socket, support OPA CPU (Up to TDP 165W, optional TDP 205W)

Memory
DDR4 ECC RDIMMs/LRDIMMs server memory, Memory Frequency 1866/2133/2400/2666MHz
12x DDR4 Channel, each Channel has 2x DIMM, 24x DDR4 slot totally Support 8GB, 16GB, 32GB, 64GB, 128GB, up to 3.0TB (M processors)

Controller
Internal storage controller：PCH support RAID 0/1/10&5, optional 12 Gb RAID 0/1/5/6/10/50/60 (1G/2G/4G cache)
External storage HBA(not RAID)：12 Gb SAS HBA
On-board SSD/SATADOM：1x PCI-e 3.0 x4 M. 2 slot、2x Mini SSD Slot(SATA DOM)

HDD Drive
Front：up to 12x hot-swap 3.5"/2.5 SAS/SATA (HDD/SSD)
Rear：up to 6x hot-swap 2.5" SAS/SATA (HDD/SSD)
Or up to 4x hot-swap 3.5"+ 2x 2.5" SAS/SATA(HDD/SSD)
NVMe：up to 12 hot-swap 2.5"NVMe/SAS/SATA(HDD/SSD)

Power Supply Platinum Level 550W 1+1 hot-swap redundant CRPS, optional 800W, 1300W
support 240 and 338 VDC PSU
I/O
Front port：VGA、2x USB3.0、1x LCD specified Mini USB;
Rear port：VGA、2x USB3.0、1x management interface、2x RJ45 port

PCI-e
Max 2x PCI-e 3.0 slot x16;
Up to 2x full-height half-length PCI-e x16 GPU;
1x non-standard PCI-e x8 SAS/RAID mezzanine card + 1x non-standard PCI-e x8 NIC mezzanine card

System Fans
N+1 Hot-swap redundant fan system

Network
Embedded 2x 1GbE port, optional 2x 1Gb/4x 1Gb/ 2x 10Gb/ 4x 10Gb/2x 40Gb NIC card

Security
TPM/TCM(optional)；
Chassis Open Intrusion detection；
Locked Front Panel；
Locked Front Cover Plate；

System
Management
Interface

Embedded iBMC Management Module, support IPMI、SOL、KVM Over IP、Virtualmedia and etc.
Optional LCD Management Module

OS

Microsoft Windows Server、Red Hat Enterprise
Linux、SUSE Linux Enterprise
Server、CentOS、Citrix Xen Server、Vmware
ESXi、Linux KVM、Ubuntu

Virtualization

VMWare ESXi 6.0

Temperature
Standard Operating Temp：5ºC - 35ºC ( w/o direct sunshine)
Expander Operation Temp：5ºC - 40ºC (Configuration Match Limited)
Transmit Store Temp：-40ºC - 65ºC

Humidity
Operating Temp 30% - 80%(none-condensation)
Store Temp：5% - 95%( none-condensation)
