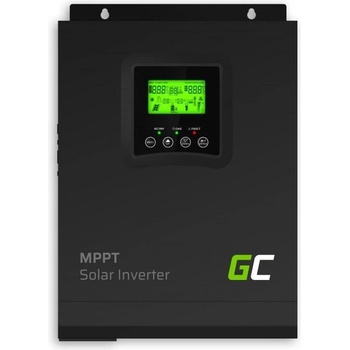

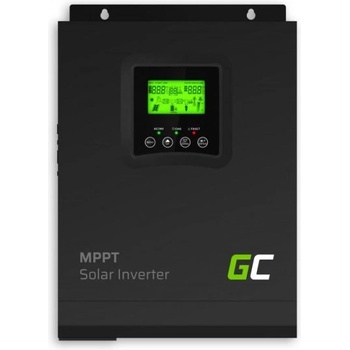

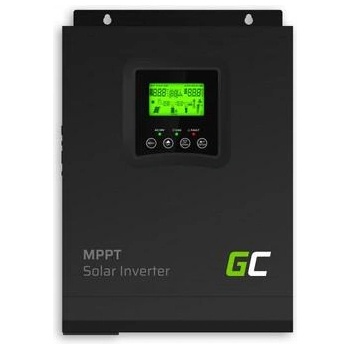

Green Cell INVSOL01

Green Cell INVSOL01

• Green Cell solar inverter combines three devices: MPPT controller, inverter and battery charger , thanks to which it is able to provide continuous energy to your devices
• The built-in MPPT controller allows you to convert the energy obtained from solar panels into electricity with appropriate parameters needed to charge the batteries and power devices in your home.
• Intuitive and easy to use, the software provides comprehensive inverter management , providing a real-time view of all relevant charging parameters.
• The inverter, the brain of solar installations , is the perfect solution when you want to take care of the environment and save money by using renewable energy as a power source in your home.





W hat is MPPT solar inverter?

The Green Cell solar inverter, or inverter, is a multifunctional product that combines three different devices:

• MPPT controller, maximizing the power obtained from solar panels
• An inverter that converts solar energy into 230V alternating current
• Energy storage charger

The main purpose of a solar inverter is to ensure continuous power even during a power cut or lack of access to the utility grid.







What is MPPT charge controller?

The MPPT (Maximum Power Point Tracking) charge controller located inside the inverter allows you to maximize the power obtained from the solar panels. Its main task is to convert the energy obtained from the sun into electricity with appropriate parameters needed to charge the batteries and power the devices. Thanks to the highest quality electronics, it is able to work with even the most extensive off-grid photovoltaic systems, ensuring full safety and maximum efficiency. .





Intuitive operation

The Green Cell solar inverter is equipped with a readable, multifunctional LCD display that informs about the most important parameters of the inverter and allows you to adjust the settings to the needs of both the energy installation and the individual needs of the user.







Specification:Ba ttery voltage 12VColour BlackDimensions 320x 224 x 97 mmWeight 7.4kgOutput Voltage 230V ACOutput frequency 50Hz or 60Hz (automatic detection)Usable power (continuous) 1000WSine wave type Pure sine waveInstantaneous power (impulsive) 2000WMaximum charging current 70AMaximum PV Voltage (VOC): 75VDCMaximum PV power 625WEfficiency of the inverter 90% - 93%Wechselspannungsregelung (Batteriemodus) 220VAC - 240VAC (adjustable)Charging voltage 13.5V DCPV voltage range for MPPT 15 - 60VDCMaximum MPPT output current 60A
