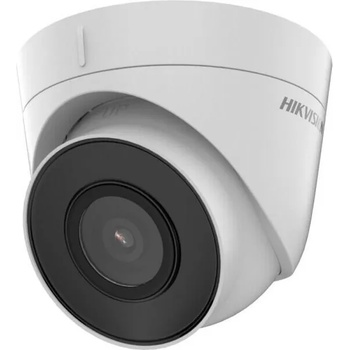

Hikvision DS-2CD1343G2-I(2.8mm)

Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV
2.8 mm, horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116°

Lens Mount M12
Iris Type Fixed
Aperture F2.0

DORI
DORI
2.8 mm, D: 59 m, O: 23 m, R: 11 m, I: 5 m
4 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m

Illuminator
Supplement Light Type IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm

Video
Main Stream

50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)

60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression
Main stream: H. 265+/H. 265/H. 264+/H. 264
Sub-stream: H. 265/H. 264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H. 264 Type Baseline Profile/Main Profile/High Profile
H. 265 Type Main Profile
Bit Rate ControlCBR/VBR
Region of Interest (ROI) 1x fixed region for main stream

Network
Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

User/Host
Up to 32 users
3 levels: administrator, operator, and user
Client iVMS-4200, Hik-Connect

Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks

Interface
Ethernet Interface 1x RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception

General
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Material Metal & Plastic
Dimension Ø110 mm × 85.3 mm
Package Dimension 150 mm × 150 mm × 141 mm
Weight Approx. 330 g
With Package Weight Approx. 550 g
Storage Conditions-30 °C to 60 °C. Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C . Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat, anti-banding, mirror, password protection, password reset via email

Protection IP67: IEC 60529-2013
