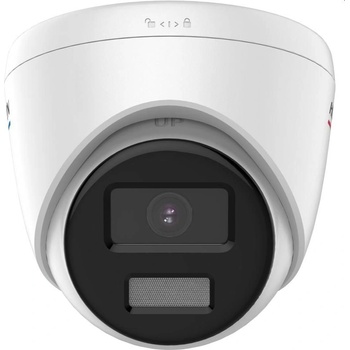

Hikvision DS-2CD1347G2-L

Hikvision DS-2CD1347G2-L

Tech specs:

• Camera
• Image Sensor1/3" Progressive Scan CMOS
• Max. Resolution2560 × 1440
• Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
• Shutter Time1/3 s to 1/100,000 s
• Day & Night24/7 color imaging
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
• Lens
• Lens TypeFixed focal lens, 2.8

• Focal Length & FOV

  2.8 mm, horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113°

  4 mm, horizontal FOV: 75°, vertical FOV: 40°, diagonal FOV: 89°

• Lens MountM12
• Iris TypeFixed
• ApertureF1.0
• < p>Depth of Field

  2.8 mm: 2 m to ∞

  4 mm: 2.7 m to ∞

• DORI

• DORI

  2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m

  4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m

• Illuminator
• Supple ment Light TypeWhite Light
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes
• Video

• Main Stream

  50 Hz:

  20 fps (2560 × 1440)

  25 fps (1920 × 1080, 1280 × 720)

  60 Hz:

  20 fps (2560 × 1440)

  24 fps (1920 × 1080, 1280 × 720)



• Sub-Stream< /p>

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

• Video Compression

  Main stream: H. 265+/H. 265/H. 264+/H. 264,

  Sub-stream: H. 265/H. 264/MJPEG



• Video Bit Rate32 Kbps to 8 Mbps
• H. 264 TypeBaseline Profile, Main Profile, High Profile
• H. 265 TypeMain Profile
• Bit Rate ControlCBR, VBR
• Region of Interest (ROI)1 fixed region(s) for main stream
• Audio
• Audio Type-U: Mono sound
• Environment Noise Filtering-U: Yes
• Audio Sampling Rate-U: 8 kHz/16 kHz
• Audio Compression -U: G. 711ulaw/G. 711alaw/G. 722.1/G. 726/MP2L2/PCM/AAC-LC
• Audio Bit Rate-U: 64 Kbps (G. 711 ulaw)/64 Kbps (G. 711 alaw)/16 Kbps (G. 722.1)/16 Kbps (G. 726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
• Network
• Protoco lsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK

• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• ClientiVMS-4200, Hik-Connect

• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Local service: Chrome 57.0+, Firefox 52.0+



• Image
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Privacy Mask4 programmable polygon privacy masks
• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

• On-Board Storage

  Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB



• Built-in Microphone-U: Yes
• Reset Key-F: Yes
• Event
• Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
• LinkageUpload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture
• General

• Power

  12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug,

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W



• MaterialMetal & Plastic

• Dimension

  Ø109 . 9 mm × 103.6 mm (Ø4.3 × 4.1")"



• Package Dimension150 mm × 150 mm × 141 mm

• Weight

  -L: Approx. 380 g; -LUF: Approx. 420 g

• With Package Weight

  -L: Approx. 620 g; -LUF: Approx. 650 g

• Storage Conditions-30 °C to 60 °C. Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-30 °C to 60 °C. Humidity 95% or less (non-condensing)
