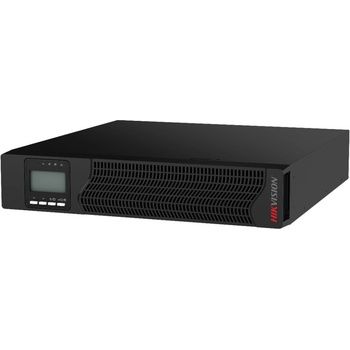

Hikvision DS-UPS01K24-R/TJS 1000VA

Hikvision DS-UPS01K24-R/TJS



• Double conversion on-line design with input power factor correction (PFC) technology, achieving an input power factor of up to 0.99.
• Digital control system for enhanced stability and reliability.
• ECO operation mode for improved energy efficiency and reduced user costs.
• Three-stage charging: constant current charging, constant voltage charging, and floating charging stages are intelligently managed.
• Wide voltage input and frequency range for stable operation with different electrical scenario, and suit with various fuel generators.
• Comprehensive protections including output overload, output short-circuit, over-temperature, battery under-voltage warning, battery over-charging protection, and power-on self-diagnostic function;



Cate gory SpecificationPo wer UPS Capacity: 1000 VA / 900 WInput Input Voltage Range: 110300Vac (176264Vac @ 100% load)  Input Frequency: 40~70Hz (50/60Hz Auto-Sensing)  Nominal Voltage: 208/220/230/240Vac  Phase: Single Phase  Power Factor: ≥0.99Output Output Frequency: Online mode: 4654Hz or 5664HzBat. Mode: (50/60 ±0.1%)Hz  Transfer Time: AC to Battery: 0msInverter to Bypass: 4ms (Typical)  Output Voltage: 208/220/230/240Vac  Power Factor: 0.9  Output Sockets: IEC panel / EU panel / UK panel / US panel (Optional)  Crest Factor: 3:1  Harmonic Distortion (THDv): ≤3% Linear load≤5% Non-linear load  Output Waveform: Pure SinewaveBattery Battery Type: Valve Regulated Lead Acid (VRLA)  Typical Recharging Time: 4 hours (To 90% capacity)  Capacity (Standard Unit): 12V / 9Ah  Battery Number: 2  DC System Voltage: 24V  Charging Current (Max. ): 1A  Expandable Runtime: Yes, with External battery pack (DS-UPSB0924B-R/TJC)IndicatorAla rm: Battery mode / Battery low voltage / Overload / Fault  LCD Display: Input voltage, Input frequency, Output voltage, Output frequency, Load percentage, Battery voltage, Inner temperature, Remaining battery backup timeEfficiency AC Mode: 89%Battery Mode: 85%Environment Operating Temperature: 0°C ~ 40°C  Storage Temperature: -25°C ~ 55°C  Humidity Range: 2095% RH @ 040°C (Non-condensing)  Altitude: 1500m)  Noise Level:
