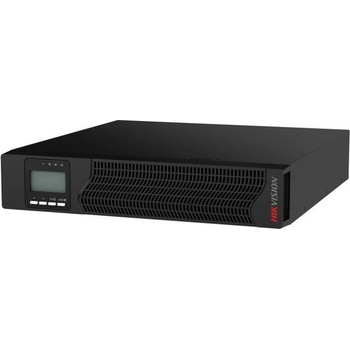

Hikvision DS-UPS06K-R/TJL 6000VA

Hikvision DS-UPS06K-R/TJL


• Double conversion on-line design with input power factor correction (PFC) technology, achieving an input power factor of up to 0.99.
• Digital control system for enhanced stability and reliability.
• ECO operation mode for improved energy efficiency and reduced user costs.
• Three-stage charging: constant current charging, constant voltage charging, and floating charging stages are intelligently managed.
• Wide voltage input and frequency range for stable operation with different electrical scenario, and suit with various fuel generators.
• Comprehensive protections including output overload, output short-circuit, over-temperature, battery under-voltage warning, battery over-charging protection, and power-on self-diagnostic function;



Cate gory SpecificationPo wer  UPS Capacity 6000 VA / 6000 WInput  Nominal Voltage 208/220/230/240VacPhase Single PhaseVoltage Range 110300Vac (110300Vac@50% load / 176~300Vac@100% load)Frequency 40~70Hz (50/60Hz Auto-Sensing)Power Factor ≥0.99Output  Voltage 208/220/230/240VacCrest Factor 3:1Power Factor 1Output Sockets IEC: Connecting terminal + IEC socketUS: Connecting terminal + US socket panelFrequency Online mode: ±1%/±2%/±4%/±5%/±10% (Optional)Battery mode: 50/60±0.1% HzHarmonic Distortion ≤1% (Linear load), ≤3% (Non-linear load)Transfer Time AC to Battery: 0 msInverter to Bypass: 0 msOutput Waveform Pure SinewaveBattery  Type Valve Regulated Lead Acid (VRLA)DC System Voltage 192/240Vdc (Settable)Charging Current Max. 12AExpandable Runtime Yes, with external battery packs (DS-UPSB09192A-R/TJ or DS-UPSB09240A-R/TJ)Indicator Al arm Battery mode / Battery low voltage / Overload / FaultLCD Display Input/output voltage & frequency, Load %, Battery voltage, Temperature, Backup timeEfficiency  AC Mode Up to 95%Battery Mode Up to 93%Environment  Operating Temp. 0℃~40℃Storage Temp. -25℃~55℃Humidity Range 0~95% (Non-condensing)Altitude 03000m (Derating required for 10003000m)Noise Level ≤50 dBPhysical  Dimensions (mm) 440 × 621.5 × 86.5Net Weight (kg) 15.5
