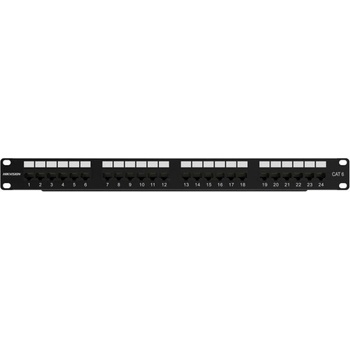

Hikvision Пач панел Hikvision DS-1CP6U24-1U, 24x порта, 1U, Cat. 6, Class E, ANSI/TIA 568, черен (DS-1CP6U24-1U)

Hikvision DS-1CP6U24-1U

Cat6 Unsheilded 24-port Patch Panel, 1U

• Electrical performance guaranteed to meet or exceed the channel specifications to ISO/IEC 11801 Class E and ANSI/TIA-568.2-D Category 6.
• High performance, supports 250MHz data rates.
• Universal design and label supports both TIA 568 A & B wiring.
• Compatible with 22-24 AWG solid or stranded wires.
• Cable termination using 110 Block termination tool.
• Press-Fit design, without soldering tin, environmentally friendly
• Separate wire peak, easy for separating wires.
• Folding bracket, convenient installation, less packing space.
• White silk screen for easy mark.
• Wire sequence offered, easy for cabling.
• Special design, protect PCB board from damage during working.
• Forward extraction design from the cabinet, easy for installation and maintenance
• 1U height, standard structure, high compatibility, easy for working.


Specifications:



Category SpecificationFi re Resistance UL 94 V-0General Specifications  Color BlackConductor Type Solid, StrandedCable Type UnshieldedRack Type EIA 19 inchRack Unit 1ANSI/TIA Category 6Termination Type IDCTotal Ports 24Keystone Quantity 24Wiring TIA 568A, TIA 568BMaterial Specifications  Panel Material Cold-Rolled SteelIDC Material PCPin Material Phosphor BronzeJack Material PBTTermination Contact Plating 50 inch goldElectrical Characteristics  DC Resistance ≤ 20 mCurrent Rating 1.5 A @ 20°CDielectric Withstand Voltage (Conductive Surface) 1,000 Vac @ 60 sDielectric Withstand Voltage (Contact-to-Contact) 1,000 Vac @ 60 sInsulation Resistance (Min) 500 MMechanical Specifications  Plug to Jack Mating Cycles ≥ 750 timesDimensions  Height 44.00 mmWidth 482.60 mmDepth 31.72 mmDepth (with bracket) 92 mmCompatible Conductor Gauge (Solid) 22-24 AWGCompatible Conductor Gauge (Stranded) 22-24 AWGEnvironmental Specifications  Operating Temperature -10°C to +60°CStorage Temperature -40°C to +68°CRelative Humidity 10% - 90%Packaging and Weights  Weight 830 g
