HOBBYWING Комбо безчетков мотор с вграден контролер Hobbywing Quicrun Fusion Mini16 for 1/16 Crawler 370spec 3000kV HW30120403 (HW30120403)
Най-евтини оферти (1)
HOBBYWING Комбо безчетков мотор с вграден контролер Hobbywing Quicrun Fusion Mini16 for 1/16 Crawler 370spec 3000kV HW30120403 (HW30120403)
Описание на продукта
Параметри на продукта
Продуктът няма параметри.
Параметри на продукта
Продуктът няма параметри.
Описание на продукта

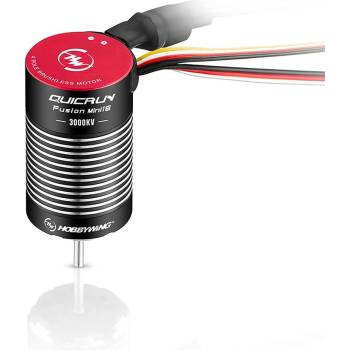

Комбо безчетков мотор с вграден контролер Hobbywing Quicrun Fusion Mini16 for 1/16 Crawler 370spec 3000kV HW30120403
The QuicRun Fusion Mini16 is the latest development in the QuicRun Fusion series. Now the convenient 2-in-1 FOC combo is also available for 1/16 and 1/18 crawlers, and just like its larger predecessor, it impresses with several innovative features.
Thanks to the integrated ESC in the motor, the QuicRun Fusion Mini16, with its dimensions of 24 x 42mm and weight of 72g (including cables and connectors), is extremely compact and lightweight. Additionally, the combo features the FOC (Field Oriented Control) mode, specially designed for rock crawlers, providing powerful torque at low speeds. The combo offers very high efficiency, generates less heat, and operates almost silently. At the same time, the Mini16 is protected with an IP66 rating, which means excellent water and dust resistance, making it ideal for all outdoor enthusiasts! With an extremely powerful built-in BEC, the system delivers a continuous current of 4A and a maximum current of 10A. The output voltage is switchable between 6V and 7.4V.
Features
- 2-in-1 motor and ESC combined
- Compact design, ideal for saving space and reducing weight
- Noticeable performance improvement
- FOC drive, ideal for crawlers
- Powerful torque even at low speeds
- Suitable for all weather and terrain conditions
- Strong built-in BEC with voltage switching function
- Various safety mechanisms
- Programmable with LED and LCD G2/Pro box
Technical Data:
Type:Brushless FOC SensoredCurrent (continuous/peak):30A/80ACell count:2-3S LiPo, 6-9 NiMH cellsBEC:6V/7.4V with 6APoles:4KV Rating:3000kVOuter diameter:24mmLength:42mmShaft diameter:2.35mmShaft length:13.5mmWaterproof:YesConnector:EC2 Programming:- LED programming box- LCD G2/Pro boxWeight:72gUsage:1/16, 1/18 crawler
Package Contents:
- QuicRun Fusion Mini16
- EC2 Connector
- Stickers and Manual (English)
Липсва или е неправилен важен параметър? Предоставената информация е само за ориентиране, затова ви съветваме да проверите дали предлаганият продукт има ключовите параметри от които се нуждаете, преди да купите от магазина по ваш избор. Въпреки че се стремим към максимална точност на информацията, за съжаление не можем винаги да гарантираме 100% съответствие. Цените на продуктите са с включен ДДС.
Продуктът все още няма отзиви.
