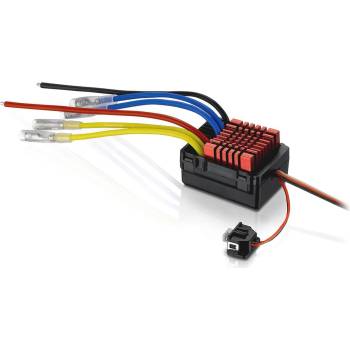

HOBBYWING Контролер четков за два мотора QuicRun 0880 Dual Brushed ESC 80A for 1: 10 водоустойчив двоен четков контролер за автомодел HW30120301 (HW30120301)

Контролер четков за два мотора QuicRun 0880 Dual Brushed ESC 80A for 1:10 водоустойчив двоен четков контролер за автомодел HW30120301

The QuicRun 0880 Dual Brushed ESC has two sets of output wires for simultaneously connecting to two motors which are used synchronously. Its very convenient for vehicles which are driven by two motors.
The waterproof and dust-proof design allows the QuicRun 0880 Dual Brushed ESC to be used in all weather conditions without any issue of damage caused to the ESC from water or debris.
The adjustable PWM frequency combined with advanced DEO/freewheeling technology guarantees users great throttle linearity and driving feel. Multiple Programmable Items which features 15 programmable parameter is applicable to various vehicles and tracks.

Features:

• Control of 2 motors simultaneously
• Strong BEC with 6V/4A
• Water and dust proof
• 15 programmable parameter items
• PWM frequency adjustable
• DEO/freewheeling technology for great throttle linearity and driving feeling
• Separate programming port
• Compact design

Technical Specification:

Typ and motor size:Brushed 540/550/775Current const. /peak:80A/400ACells:2-4s LiPo / 5-12 Zellen NiMHMotor Limit 540/550:2s LiPo, 6s NiMH: > 12T or < 30000 RPM
3s LiPo, 9s NiMH: > 18T or < 20000 RPM
4s Lipo, 12s NiMH: > 24T or < 15000 RPM
When driving 2 motor, the Turns oft teh motors need to be increased accordingly.
BEC:Switch  Mode: 6V/4AInput connector:NoOutput connector:Bullet 4mm (female)Dimension:45.9x34.7x26.5mmWeight :75gWaterproof:YesApplicable:1/8, 1/10 Rock Crawler



Scope of  Delivery:

1x ESC
1x Sticker
1x Manual

Optional Accessory:

1x   HW30501003 LED-Programm box
