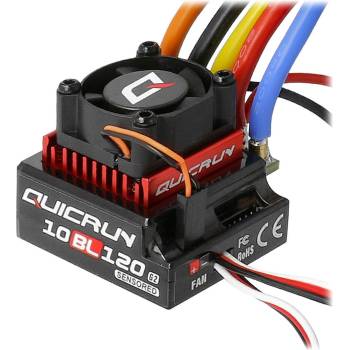

HOBBYWING Контролер сензорен Hobbywing QuicRun 10BL120G2 120A Sensored ESC 2-3s HW30125002 (HW30125002)

Контролер сензорен Hobbywing QuicRun 10BL120G2 120A Sensored ESC 2-3s HW30125002

The second generation of the Quicrun 10BL120 ESC is a classic brushless solution for 1/10 cars such as touring cars, buggies and drifters. With an extended BEC and a variety of additional parameters, the controller is in no way inferior to its predecessor. Hobbywing's QuicRun series offers a cost-effective alternative for all drivers who simply want to achieve more with their setups - whether with brushless motors or not. It is aimed primarily at beginners and advanced pilots and impresses with the outstanding, well-known quality of Hobbywing products as well as the   uncomplicated commissioning.

Features:

• More setting options than its predecessor (including turbo delay, turbo timing and boost timing)
• Improved BEC output with switch instead of linear mode
• Motor rotation direction freely selectable (CW or CCW)
• Top performance at a low price
• Compact design, suitable for a variety of chassis
• Ideal for many areas of application and competitions
• Various protective functions:
  • Overheating protection
  • Cutoff voltage

Technical Specifications:

Type:Brushless, SensoredCurrent (cont. /peak):120A / 760AInput Voltage:2-3S LipoBEC:6V / 7.4V @ 4A (Switch Mode)Motor Types:Brushless Motors (with/without sensor)Motor Limit:2S: >= 4.5T, 3650 Motor
3S: >= 10.5T, 3650 MotorFan:Yes, powered by the BECProgramming:SET Button
LED Program Box
LCD Program Box (G2)Dimensions:44 x 36.8 x 32.3mmWeight:101.5gApplication:1/10 Touring, Buggy, Drift

Zubehör optional:

• HW30502001   LCD Program Box G2
• HW30501003   LED Program Box

Inhalt:

• Quicrun 10BL120 G2 ESC
• Manual (English)
• St icker & Mounting accessories
• Programming table as a sticker for the LED programming box
