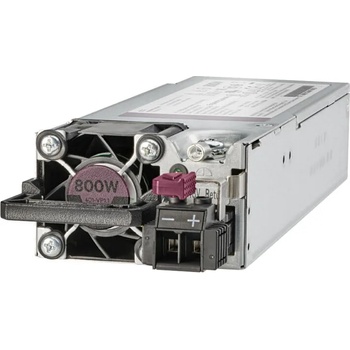

HP 865434-B21 800W

HPE Power Supply Kit 800W Flex Slot 48VDC Hot Plug Low Halogen




Manufacturer
HEWLETT PACKARD ENTERPRISE

Manufacturer Part No
865434-B21



Marketing Description
HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE server solutions. HPE's Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

Product Features

Titanium-certified power efficiencyTitanium power efficiency certification from 80Plus program - one of the highest power efficiency certifications available in the IT industry reduces data center operating costs related to power by reducing server power requirements and power waste. Flex slot designTool-less hot plug design improves serviceability buy allowing quick and easy access to system power supplies. Multiple power output optionsMultiple output options allowing users to "right-size" their power needs and avoid "trapped" power capacity in their data centers caused by over-subscribing power needs. Support for both low-line and high-line AC input voltages providing additional flexibility to operate in multiple. Power managementSupports multiple operating modes to maximize power efficiency when configuring servers with redundant power supplies.

General

Device Type

Power supply - hot-plug / redundant - plug-in module

Specification Compliance

Flex Slot

Power Device

Input Voltage

DC -48 V

Input Voltage Range

DC -40 - -72 V

Frequency Required

50 - 60 Hz

Power Capacity

800 Watt / 883 VA

Efficiency

94%

80 PLUS Certification

80 PLUS Platinum

Miscellaneous

Compliant Standards

UL, TUV, C-Tick, BSMI, cUL, CCC, KCC, WEEE, low halogen, CISPR Class A

Environmental Parameters

Min Operating Temperature

5 °C

Max Operating Temperature

55 °C

Humidity Range Operating

5 - 95% (non-condensing)

Dimensions & Weight

Width

6.8 cm

Depth

22.53 cm

Height

4.04 cm

Weight

910 g

Dimensions & Weight (Shipping)

Shipping Width

19.05 cm

Shipping Depth

37.47 cm

Shipping Height

14.61 cm

Shipping Weight

1.59 kg

Compatibility Information

Designed For

HPE Apollo 4200 Gen10 192TB Qumulo Hybrid Node (800 Watt), 4200 Gen10 336TB Archive Node with 25Gb NIC for Qumulo (800 Watt), 4200 Gen10 384TB 25Gb Capacity Server for Cohesity DataPlatform (800 Watt), 4200 Gen10 384TB Capacity Server for Cohesity DataPlatform (800 Watt)

HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10 (800 Watt), Medium Solution with HPE ProLiant DL325 Gen10 Plus (800 Watt), Medium Solution with HPE ProLiant DL360 Gen10 (800 Watt), Small Solution with HPE ProLiant DL360 Gen10 (800 Watt)

HPE ProLiant DL20 Gen10 Plus (800 Watt), DL20 Gen10 Plus Base (800 Watt), DL20 Gen10 Plus Entry (800 Watt), DL20 Gen10 Plus High Performance (800 Watt), DL20 Gen10 Plus Performance (800 Watt), DL325 Gen10 Plus All-NVMe Flash Node for Qumulo (800 Watt), DL325 Gen10 Plus All-NVMe Flash Node for Software Defined Storage (800 Watt), DL325 Gen10 Plus for Weka BAse Tracking (800 Watt), DL325 Gen10 Plus for Weka Expansion Tracking (800 Watt), DL325 Gen10 Plus V2 (800 Watt), DL325 Gen10 Plus V2 Base (800 VA), DL325 Gen10 Plus V2 for Weka Base Tracking (800 Watt), DL325 Gen10 Plus V2 Performance (800 Watt), DL345 Gen10 Plus (800 Watt), DL345 Gen10 Plus Base (800 Watt), DL345 Gen10 Plus Entry (800 Watt), DL360 Gen10 All Flash Server for Weka (800 Watt), DL360 Gen10 Performance for Cohesity DataPlatform (800 Watt), DL360 Gen10 Plus (800 Watt), DL360 Gen10 Plus All-NVMe Server for Software Defined Storage (800 Watt), DL360 Gen10 Plus for Weka Base Tracking (800 Watt), DL360 Gen10 Plus Network Choice (800 Watt), DL365 Gen10 Plus (800 Watt), DL380 Gen10 for SAP HANA Compute Block (800 Watt), DL380 Gen10 Plus (800 Watt), DL380 Gen10 Plus Network Choice (800 Watt), DL385 Gen10 Plus V2 Base (800 Watt), DL560 Gen10 for SAP HANA Compute Block (800 Watt), DX360 Gen10 Plus (800 Watt), DX385 Gen10 Plus (800 Watt), DX385 Gen10 Plus Network Choice (800 Watt)

HPE SimpliVity 325 Gen10 Plus V2 Node (800 Watt)

Technical data provided by third party. We assume no liability for errors within these data.
