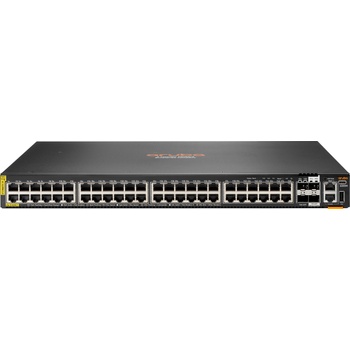

HP Aruba 6200M (R8Q70A)

HPE Aruba CX 6200M 48G

R8Q70A



• Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.
• Scalability with 8 member VSF stacking. 24 and 48-port fixed and modular switch models can stack together for up to 384 ports.
• Models include modular switches with 1/10GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10GbE SFP+ or 1GbE SFP uplinks, and options that support 30W to 60W of PoE per port.
• Intelligent monitoring and visibility via Aruba Network Analytics Engine. Aruba NetEdit support for automation, configuration and verification. One touch deployment using the Aruba CX Mobile App.
• Aruba Dynamic Segmentation enables enhanced security and simple access for users and IoT.
• Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.



Device Type Switch - 48 ports - L3 - Managed - stackableEnclosure Type Front and side to back rack-mountable 1USubtype Gigabit EthernetPorts 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking)Power Over Ethernet (PoE) PoE+PoE Budget 1440 WPerformance Switching capacity: 176 Gbps
Throughput: 130.9 Mpps
Latency (1 Gbps): 2.28 s
Latency (10 Gbps): 1.46 s
Packet buffer size: 8 MB
Stacking bandwidth: 40 GbpsCapacity Switched virtual interfaces (SVIs): 128
IPv4 host table capacity: 8000
IPv6 host table capacity: 8000
IPv4 routes (Unicast): 2000
IPv6 routes (Unicast): 2000
IGMP groups: 1000
MLD groups: 1000
IPv4 ACL entries (ingress): 1000
IPv6 ACL entries (ingress): 1000
MAC ACL entries (ingress): 1000
IPv4 ACL entries (egress): 512
IPv6 ACL entries (egress): 256
MAC ACL entries (egress): 512MAC Address Table Size 16000 entriesJumbo Frame Support 9220 bytesMax Units In A Stack 8Routing Protocol OSPF, RIP-2, OSPFv2, OSPFv3, ECMPRemote Management Protocol SNMP, SNMP 3, SNMP 2c, CLIEncryption Algorithm MD5, SSL, FIPS 140-2Authentication Method RADIUS, TACACS+Features Layer 2 switching, ARP support, DiffServ support, Virtual Route Redundancy Protocol (VRRP) support, Quality of Service (QoS), Trusted Platform Module (TPM), Equal-Cost Multipath (ECMP), Uni-Directional Link Detection (UDLD), Deficit Weighted Round Robin (DWRR), Management Information Base (MIB), Class of Service (CoS), Type of Service (ToS), Bridge protocol data unit (BPDU), Source-Specific Multicast (SSM), Network Timing Protocol (NTP), security slot (Kensington security lock compatible), Rapid PVST+ (RPVST+), DNS support, IGMP support, Unidirectional Link Detection (UDLD), Automatic Media-Dependent Interface Crossover (MDIX), web GUI management portal, Unsupported Transceiver Mode (UTM), Egress Queue Shaping (EQS)Compliant Standards IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3atProcessor 1 x ARM: 1.8 GHzRAM 8 GB DDR4 SDRAMFlash Memory 16 GBExpansion / ConnectivityInterfaces 48 x 10/100/1000 Base-T (PoE+) RJ-45 PoE Class 4
4 x 1/10Gbit LAN SFP+ 2x LRM; 2x LRM/MACSec 256
1 x console RJ-45
1 x management RJ-45
1 x console (USB) Type C
1 x USB Type A hostPowerPower Device Internal power supply (not installed)Max Supported Qty 2Voltage Required AC 100-120/200-240 V (50/60 Hz)Power Consumption Operational 74 WattPower Consumption Stand by 59 WattCompliant Standards EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, RoHS, Laser Class 1, WEEE, VCCI Class A, IEC 60950-1:2005 + A1:2009 + A2:2013, CISPR 35, EN 60825-1:2014, EN 61000-3-2:2019, IEC 60825-1:2014 Class 1, UL 62368-1 Third Edition, EN 61000-3-3:2013/A1:2019, IEC 62368-1:2018 Third Edition, EN 55035:2017+A11:2020, EN 62368-1:2014+A11:2017 2nd Ed. , EN 62368-1:2020+A11:2020 3rd Ed. , BS EN 62368-1:2014 + A11:2017 2nd Ed, BS EN 62368-1:2020 + A11:2020 3rd Ed, IEC 62368-1:2014 2nd Ed, CNS 15598-1:2020, CISPR 32 Ed 2.1: 2019 Class A, CISPR 35 Ed 1.0:2016, CSA 22.2 No. 62368-1 Third Edition, EN 55032:2015 + A11:2020 Class A, FCC 47 CFR part 15B:2014 Class ASoftware / System RequirementsOS Required AOS-CXDimensions & WeightWidth 44.2 cmDepth 38.5 cmHeight 4.4 cmWeight 6.15 kg
