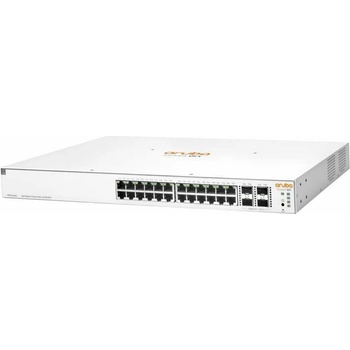

HP Aruba Instant On 1930 24G (JL684B)

HPE Aruba IOn 1930 24G 4SFP+ 370W Sw
id="p46143458"> HPE Aruba IOn 1930 24G 4SFP+ 370W SwManufacturer HEWLETT PACKARD ENTERPRISEManufacturer Part No JL684BMarketing DescriptionThe Aruba Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The Aruba Instant On 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. Product Features

• Simplify network deployment and management for small organizations
  The Aruba Instant On 1930 switch series features easy-to-use, out-of-the-box, plug-and-play deployment. The series offers a complete portfolio of choices for increased small business flexibility. The 24-port model includes four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity. The Aruba Instant On 1930 switch series can be deployed using two management modes - Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
• Keep your business protected with integrated security features
  The Aruba Instant On 1930 switch series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation. Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access. Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks. Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection.
• Deliver high performance
  The Aruba Instant On 1930 switch series delivers advanced functionalities including customizable like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control. Class 4 PoE options allow to power devices like IP phones, surveillance cameras and access points, without the cost of additional cabling. The 24-port model includes 1G/10G SFP+ ports for reliable fiber connectivity and other connections across longer distances.

GeneralDevice TypeSwitch - 28 ports - L3 - ManagedEnclosure TypeRack-mountable 1USubtypeGigabit EthernetPorts24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+Power Over Ethernet (PoE)PoEPoE Budget370 WPerformanceSwitching capacity: 128 Gbps
Throughput: 95.23 Mpps
Latency (1 Gbps): 2.4 s
Latency (10 Gbps): 1.3 sCapacityLink aggregation ports: 8
IPv4 routes (static): 32
VLANs supported: 256
Access Control Entries (ACEs) per ACL: 480
Packet buffer size: 1.5 MBMAC Address Table Size16000 entriesJumbo Frame Support9216 bytesRouting ProtocolStatic IP routingRemote Management ProtocolSNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUSEncryption AlgorithmSSLAuthentication MethodRADIUSFeaturesFlow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Trusted Platform Module (TPM), LLDP support, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, Class of Service (CoS), BPDU Filter, PoE Class 4Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2afProcessor1 x ARM: 800 MHzRAM512 MB SDRAMFlash Memory256 MBStatus IndicatorsPort status, power, PoEExpansion / ConnectivityInterfaces24 x 10/100/1000 Base-T RJ-45 PoE - 370 W
4 x 1/10Gbit LAN SFP+PowerPower DeviceInternal power supplyVoltage RequiredAC 120 V (50/60 Hz)Power Consumption Operational439 WattMiscellaneousMTBF71 yearsCompliant StandardsCISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN 55024:2010, CISPR 35, SSL, EN 55035:2017Dimensions & WeightWidth44.25 cmDepth26.47 cmHeight4.39 cmWeight3.67 kgManufacturer WarrantyService & SupportLimited warranty - lifetimeEnvironmental ParametersMin Operating Temperature0 °CMax Operating Temperature40 °CHumidity Range Operating15 - 95% (40 °C)Min Storage Temperature-40 °CMax Storage Temperature70 °CHumidity Range Storage15 - 95% (60 °C) Technical data provided by third party. We assume no liability for errors within these data.
