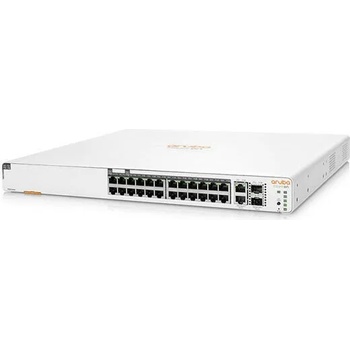

HP Aruba Instant On 1960 (JL807A)

HPE Aruba Instant On 1960 24G 2XT 2XF PoE+ 370W Switch JL807A
id="p4337755"> HPE Aruba Instant On 1960 24G 2XT 2XF PoE+ 370W Switch JL807AManufacturer HEWLETT PACKARD ENTERPRISEManufacturer Part No JL807AMarketing DescriptionAruba Instant On 1960 Switches are advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. Aruba Instant On 1960 switches are made to handle today's bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal. Product Features

• High-level Gigabit with 10GbE networking for advanced small businesses
  Each model of the Aruba Instant On 1960 Switch Series includes four 10GbE connections to connect to servers, network storage devices, or to other switches. Two connections of 10GBASE-T deliver 10GbE over copper Category 6a cabling for simple, high-bandwidth connections to a maximum distance of 100 meters.
• Ease of use with cloud-managed stacking
  The Aruba Instant On mobile app and cloud-based web portal make cloud-managed stacking easy - just follow the recommendations to stack up to four Aruba Instant On 1960 switches and manage as a single entity. The Aruba Instant On mobile app automatically detects members, making multiple stack members easy to setup and manage remotely.
• Robust security to protect your network
  The Aruba Instant On 1960 Switch Series lets you use VLANs and Access Control Lists to set bounds on what data can be seen by which users. Leverage 802.1X with a RADIUS server to ensure only known and authorized users can access your network. Supports automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.

GeneralDevice TypeSwitch - 24 ports - L3 Lite - Managed - stackableEnclosure TypeRack-mountable 1USubtypeGigabit EthernetPorts24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-TPower Over Ethernet (PoE)PoEPoE Budget370 WPerformanceThroughput: 95 Mpps
Switching capacity: 128 Gbps
Latency (100 Mbps): 4.4 s
Latency (1 Gbps): 2.2 s
Latency (10 Gbps): 1.1 sCapacityMAC address entries: 16000
IPv4 routes (static): 32
IPv6 routes (static): 32MAC Address Table Size16000 entriesJumbo Frame Support9216 bytesRouting ProtocolStatic IP routingRemote Management ProtocolSNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, RADIUSAuthentication MethodRADIUSFeaturesFlow control, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Trusted Platform Module (TPM), Link Aggregation Control Protocol (LACP), Class of Service (CoS), Energy-Efficient Ethernet (EEE), BPDU Filter, auto voice VLAN, Media Endpoint Discovery (LLDP-MED)Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1ab (LLDP)Processor1 x ARM: 800 MHzStatus IndicatorsPort status, powerExpansion / ConnectivityInterfaces24 x 10/100/1000 Base-T RJ-45 370 W
2 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ SFP+
2 x 10GBase-T RJ-45PowerPower DeviceInternal power supplyVoltage RequiredAC 100-240 V (50/60 Hz)MiscellaneousMTBF65.3 yearsCompliant StandardsEN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, VCCI Class A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, UL 62368-1 Second Edition, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, EN 55032:2015 Class A, CISPR 32:2015 Class A, UL 62368-1, EN 55035, CISPR 35, IEC/EN 60825-1:2014 Class 2, IEC/EN 62368-1, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, FCC CFR47 Part 15 B Class A 2018Pricing TypeBTODimensions & WeightWidth44.25 cmDepth35.05 cmHeight4.395 cmWeight4.7 kgManufacturer WarrantyService & SupportLimited warranty - lifetimeEnvironmental ParametersMin Operating Temperature0 °CMax Operating Temperature40 °CHumidity Range Operating15 - 95% (40 °C)Min Storage Temperature-40 °CMax Storage Temperature70 °C Technical data provided by third party. We assume no liability for errors within these data.
