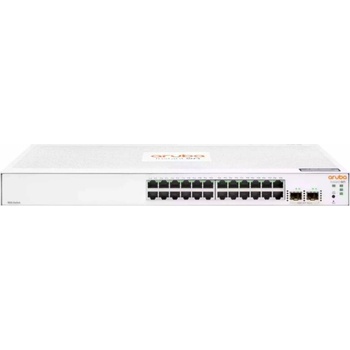

HP Aruba Ion 1830 24g JL812A#ABB

Aruba Instant On 1830 Switch Series provides an easy to use and affordable wired solution for networks supporting IT, mobile, and cloud applications.

This affordable and easy-to-deploy smart-managed switch series is ideal for small businesses looking for cost-effective wired infrastructure to keep up with evolving network demands. These entry-level, smart-managed switches offer Layer 2 switching capabilities, Gigabit connectivity, along with flexible management modes - all at an affordable price point. With a flexible management dashboard, Power over Ethernet (PoE) options, and energy-efficient features, these switches deliver a solid business network for SMBs with limited budgets.

• Smart-managed Layer 2 Ethernet switch series ready to deploy in 8, 24-, and 48-port for non-PoE and PoE models.


• Compact and fan-less 8-port PoE/ non-PoE models and 24-port non-PoE model for acoustically sensitive environments.


• Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.


• Two (2) and four (4) dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.


• Option to manage your switches through local web GUI.


• Cost-effective PoE Support: With half of the ports capable of supporting PoE, these switches are ideal for the most cost-efficient environments.

Differentiator Entry-level, smart-managed, Gigabit Layer 2 switches. Easy-to-deploy, secure and affordable switches, designed for small businesses looking for cost-effective solution with evolving networking demands. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1830 switches. Can also manage the device through the local web GUI. This model has 24 10/100/1000 RJ-45 and 2 SFP 1GbE ports.

Specifications:

Power consumption Maximum: 100-127V: 19.1W 200-220V: 19W: Idle: 100-127V: 7.6W 200-220V: 7.8W

Input voltage 100 - 240 VAC

Ports 24 RJ-45 10/100/1000 ports, 2 SFP 1GbE ports

Switching capacity 52 Gbps

Throughput 38.68 Mpps

Memory and processor ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB

PoE capability-

Operating Temperature 0-40°C, 0-10,000 ft

Management features Aruba Instant On Cloud; Web browser; SNMP Manager

Weight 5.50 lb

Weight 2.49 kg

Minimum dimensions ( H x W x D) 8.50 x 17.44 x 1.73 in

Minimum dimensions ( H x W x D) 21.59 x 44.30 x 4.39 cm
