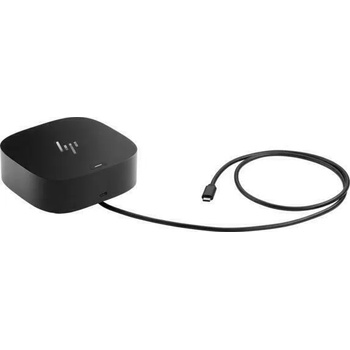

HP G5 (26D32AA#ABB)

Compatibility without constraints

Designed with universal compatibility in mind, this dock works with both HP and non-HP USB-C®- and Thunderbolt-enabled laptops.

Clear the clutter

Avoid a messy desk by using a simple one-cord setup that plugs in multiple devices.

Easily manage your commercial HP fleet

Help IT secure and remotely manage your deployed commercial HP notebooks and the dock with advanced network manageability features that include PXE Boot, LAN/WLAN switching, and WoL and MAC Address Pass-Through in all power states.

Small footprint

Reclaim your desk with a compact dock that takes up only 5 x 5 inches of space.





Specifications

Color
Black

Dimensions (L x W x H)
122 x 122 x 45 mm

Weight
0.68 kg

Top components
LED and power button to power or wake host system

Front components
One USB-CTM port with data and power out (15W)

One USB-CTM cable to connect to host system (1 meter cable length)

Side components
Two USB 3.0 charging ports

One combo audio jack

Back components
Two USB 3.0 charging ports

Two DisplayPortTM ports

One 10/100/1000 RJ 45 port

One HDMI 2.0 port

One standard lock slot

External monitor support
3 displays is the maximum displays supported, depending on the capabilities of the host machine. Triple 4K displays requires a DP 1.4 machine with DSC** in high res mode.

See QuickSpecs for configurations supported at: http://h20195. www2. hp. com/v2/GetDocument. aspx?docname=c04168358

Power to system
Up to 100W via USB-CTM (up to 75W on non HP machines) Separate AC power needed for HP ZBooks that require more than 100W power delivered via USB-C alt mode.

Power to host (USB-C PD)
5V , 9V, 10V, 12V, 15V, 20V all at 5A MAX

Operating systems
Win 7

Win 10

MacOS

Chrome OS
