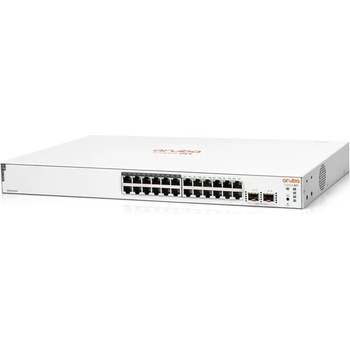

HP Instant On JL813A

Aruba Instant On 1830

Aruba Instant On 1830 Switch Series provides an easy to use and affordable wired solution for networks supporting IT, mobile, and cloud applications.
This affordable and easy-to-deploy smart-managed switch series is ideal for small businesses looking for cost-effective wired infrastructure to keep up with evolving network demands.  These entry-level, smart-managed switches offer Layer 2 switching capabilities,  Gigabit connectivity, along with flexible management modes - all at an affordable price point. With a flexible management dashboard, Power over Ethernet (PoE) options, and energy-efficient features, these switches deliver a solid business network for SMBs with limited budgets.



• Smart-managed Layer 2 Ethernet switch series ready to deploy in 8, 24-, and 48-port for non-PoE and PoE models.
• Compact and fan-less 8-port PoE/ non-PoE models and 24-port non-PoE model for acoustically sensitive environments.
• Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
• Two (2) and four (4) dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.
• Option to manage your switches through local web GUI.
• Cost-effective PoE Support: With half of the ports capable of supporting PoE, these switches are ideal for the most cost-efficient environments.





Specs:

GeneralDevice Type Switch - 24 ports - smartEnclosure Type Desktop, rack-mountable 1USubtype Gigabit EthernetPorts 12 x 10/100/1000 + 12 x 10/100/1000 (PoE+) + 2 x Gigabit SFPPower Over Ethernet (PoE) PoE+PoE Budget 195 WPerformance Latency (100 Mbps): 5.2 s
Latency (1 Gbps): 2.8 s
Throughput: 38.68 Mpps
Switching capacity: 52 GbpsMAC Address Table Size 16000 entriesJumbo Frame Support 9216 bytesRouting Protocol IGMPv2, IGMPRemote Management Protocol SNMP 1, SNMP 2c, HTTP, HTTPS, TFTP, SCP, ICMPEncryption Algorithm SSLFeatures Flow control, auto-sensing per device, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, SNTP support, wall mountable, Spanning Tree Protocol (STP) support, event log, Quality of Service (QoS), Trusted Platform Module (TPM), Cable Diagnostics Function, LLDP support, DHCP client, Class of Service (CoS), cloud managed, 1.5MB packet buffer, Secure Copy (SCP), Link Aggregation, dual image support, Denial of Service (DoS) protection, Energy-Efficient Ethernet (EEE), BPDU Filter, loop protection, Global Storm Control, Port SchedulingCompliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ac, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3azProcessor 1 x ARM: 800 MHzRAM 512 MB SDRAMFlash Memory 256 MBStatus Indicators Port status, port duplex mode, link/activity, speedExpansion / ConnectivityInterfaces 12 x 1000Base-T RJ-45
2 x Gigabit LAN SFP
12 x 1000Base-T RJ-45 PoE+PowerPower Device Internal power supplyVoltage Required AC 100-240 V (50/60 Hz)Power Consumption Operational 244.6 WattMiscellaneousMTBF 96.6 yearsCompliant Standards IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032:2015, UL 62368-1 Second Edition, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, IEC/EN 60825-1:2014 Class 1, CISPR 32 Class A, EN 55035, CISPR 35, IEC 62368-1 Second Edition, CAN/CSA-C22.2 No. 62368-1 Third Edition, UL 62368-1 Third Edition, IEC 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, FCC CFR47 Part 15 B Class A 2018Dimensions & WeightWidth 44.3 cmDepth 25.3 cmHeight 4.39 cmWeight 3.47 kgEnvironmental ParametersMin Operating Temperature 0 °CMax Operating Temperature 40 °CHumidity Range Operating 15 - 95% (non-condensing)Min Storage Temperature -40 °CMax Storage Temperature 70 °CHumidity Range Storage 15 - 95% (non-condensing)
