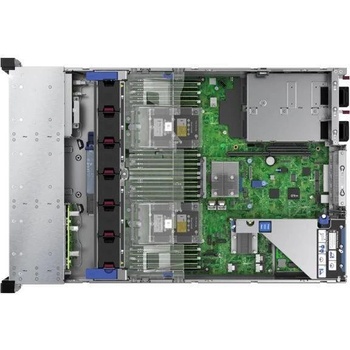

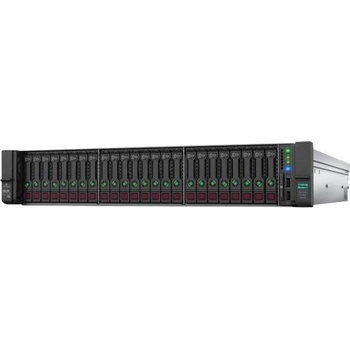

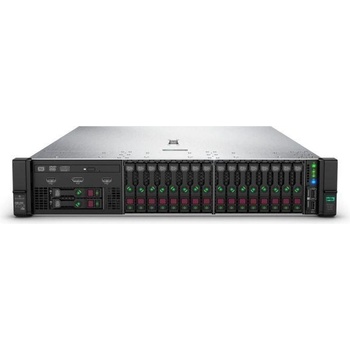

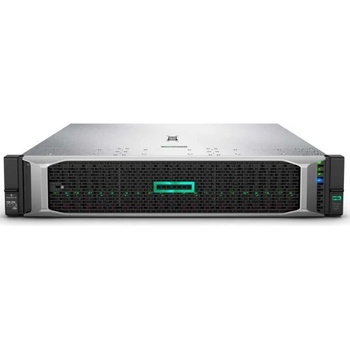

HP ProLiant DL380 G10 P24841-B21

Marketing DescriptionAdaptable for diverse workloads and environments, the secure ProLiant DL380 Gen10 delivers world-class performance with the right balance of expandability and scalability. Designed for supreme versatility and resiliency, it is ideal for multiple environments. Product Features

• Defend applications and data
  The line of defense against cyber-attackers with select servers built to the tough security standards in secured facilities, bringing together security, processes, and people to deliver protection for your most sensitive applications and data even before your server is built.
• Flexible design making your investment expand as your business needs grow
  The HPE ProLiant DL380 Gen10 server has an adaptable chassis, including Hewlett Packard Enterprise modular drive bay configuration. Adapting and growing to changing business needs, Networking Choice (NC) server models provide flexibility in the primary networking choice.

GeneralTypeServerProduct Form FactorRack-mountable - 2UServer Scalability2-wayHot-Swap Bays Qty8LocalisationRegion: Worldwide (excluding China, Japan)Processor / ChipsetCPUIntel Xeon Silver 4210RClock Speed2.4 GHzMax Turbo Speed3.2 GHzNumber of Cores10-coreCPU Qty1Max CPU Qty2CPU UpgradabilityUpgradableProcessor Main FeaturesHyper-Threading Technology, Intel Turbo Boost Technology 2CPU SocketFCLGA3647 SocketChipset TypeIntel C621Cache MemoryInstalled SizeL3 Cache - 13.75 MBCache Per Processor13.75 MBRAMInstalled Size32 GB / 1.5 TB (max)TechnologyDDR4 SDRAM - Advanced ECCEffective Memory Speed2400 MHzRated Memory Speed2933 MHzForm FactorDIMM 288-pinSlots24 (Total) / 23 (empty)FeaturesRegistered, dual rank, slots 13 - 24 are available in two-processor configuration only, HPE SmartMemoryConfiguration Features1 x 32 GBRAM Supported3 TB Load-Reduced - ECC
1.5 TB registered - ECC
192 GB Non-Volatile - ECC
6 TB - HPE Persistent Memory - Optane DC PersistentHard DriveTypeNo HDDStorage ControllerType1 x RAID - PCIe 3.0 x8Controller Interface TypeSATA 6Gb/s / SAS 12Gb/sStorage Controller NameHPE Smart Array P408i-aChannel Qty8RAID LevelRAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADMBuffer Size2 GBOptical StorageTypeNo optical driveCard ReaderTypeCard readerSupported Flash Memory CardsmicroSDMonitorMonitor TypeNone. Graphics ControllerVideo Memory16 MBVideo InterfacesVGANetworkingEthernet Ports4 x Gigabit EthernetData Link ProtocolEthernet, Fast Ethernet, Gigabit EthernetRemote Management ProtocolSNMP 3, IPMI 2.0, SMASH CLPRemote Management ControllerIntegrated Lights-Out 5FeaturesWake on LAN (WoL), ACPI support, PXE supportExpansion / ConnectivityBays8 (total) / 8 (free) x hot-swap 2.5 SFFSlots1 (total) / 1 (free) x microSD Card (internal)
1 (total) / 1 (free) x PCIe 3.0 x8 - full-length, full-height
1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height
1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, full-height
1 (total) / 0 (free) x FlexibleLOMInterfaces1 x HPE iLO - Type A (1 in front)
5 x USB 3.0 (1 front, 2 rear, 2 internal)
1 x HPE iLO - RJ-45
4 x LAN (Gigabit Ethernet) - RJ-45
1 x VGAMiscellaneousIncluded AccessoriesCable management arm, 4 standard fans, SFF Easy install railsCompliant StandardsAES, TLS v1.2, low halogen, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1PowerDevice TypePower supply - hot-plugPower RedundancyOptionalPower Redundancy Scheme1+1 (with optional power supply)Installed Qty1Max Supported Qty2Voltage RequiredAC 120/230 V (50/60 Hz)Power Provided800 Watt80 PLUS Certification80 PLUS PlatinumOperating System / SoftwareOS CertifiedCentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5, SuSE Linux Enterprise Server 12 SP2, ClearOSEnvironmental StandardsENERGY STAR CertifiedYesENERGY STAR Version3.0Manufacturer WarrantyService & SupportLimited warranty - parts and labour - 3 years - on-siteDimensions & WeightWidth44.55 cmDepth73.03 cmHeight8.74 cmWeight14.76 kgEnvironmental ParametersMin Operating Temperature10 °CMax Operating Temperature35 °CHumidity Range Operating8 - 90% (non-condensing)
