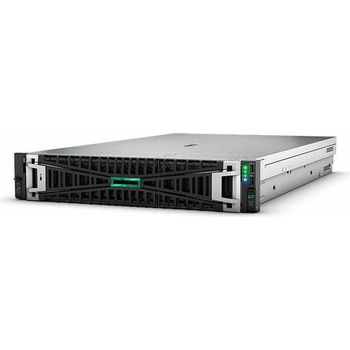

HP ProLiant DL380 G11 P52560-421

HPE ProLiant DL380 Gen11
P52560-421

Product Form Factor: Rack-mountable - 2U
Built-in Devices: Led panel
Server Scalability: 2-way
Hot-Swap Bays Qty: 8

Processor / Chipset
CPU: Intel Xeon Silver 4410Y
Clock Speed: 2 GHz
Max Turbo Speed: 3.9 GHz
Number of Cores: 12-core
Number of Threads: 24-thread
CPU Qty: 1
Max CPU Qty: 2
CPU Upgradability: Upgradable
Processor Main Features: Intel Turbo Boost Technology
Chipset Type: Intel C741

Cache Memory
Installed Size: L3 Cache - 30 MB
Cache Per Processor: 30 MB

RAM
Installed Size: 32 GB (installed) / 8 TB (max)
Technology: DDR5 SDRAM
Effective Memory Speed: 4000MT/s
Rated Memory Speed: 4800MT/s
Form Factor: DIMM 288-pin
Slots: 32 (Total) / 31 (empty)
Features: HPE SmartMemory, registered, slots 17 - 32 are available in two-processor configuration only
Configuration Features: 1x 32 GB

Hard Drive Type: No HDD

Storage Controller
Type: 1x RAID - PCIe 4.0 x8
Controller Interface Type: SATA 6Gb/s / SAS 12Gb/s / PCIe
Storage Controller Name: HPE Smart Array MR408i-o
Channel Qty: 8
RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
Buffer Size: 4GB

Optical Storage
Type: No optical drive

Graphics Controller
Video Memory: 16 MB
Video Interfaces: VGA

Networking
Ethernet Ports: 4x Gigabit Ethernet
Ethernet Controller: Broadcom BCM5719
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol: SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller: Integrated Lights-Out 6
Features: Wake on LAN (WoL), PXE support
Compliant Standards: OCP 3.0

Expansion / Connectivity
Bays:
1x external Universal Media Bay
8x hot-swap 2.5" SFF

Slots:
2x FlexibleLOM
1x PCIe 5.0 x16 - full-length, full-height
1x PCIe 5.0 x16 - full-length, full-height (x8 mode)
1x PCIe 5.0 x16 - half-length, full-height (x8 mode)

Interfaces:
1x USB 3.0 (1 in front) (HPE iLO Service Port)
4x USB 3.0 (2 rear, 2 internal)
1x HPE iLO - RJ-45 (1 rear)
1x VGA (1 rear)
4x LAN (Gigabit Ethernet) - RJ-45

Power
Device Type: Power supply - hot-plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: AC 100/240 V
Power Provided: 1000 Watt
80 PLUS Certification: 80 PLUS Titanium

Operating System / Software
OS Provided: No operating system
OS Certified: Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, Canonical Ubuntu, Oracle Linux, Citrix
Software: HPE Server UEFI

Sustainability Information
ENERGY STAR Certified: Yes
ENERGY STAR Version: 3.0

Dimensions & Weight
Width: 44.8 cm
Depth: 72.7 cm
Height: 8.75 cm
Weight: 16 kg

Environmental Parameters
Min Operating Temperature: 10 °C
Max Operating Temperature: 35 °C
Humidity Range Operating: 8 - 90% RH (non-condensing)
