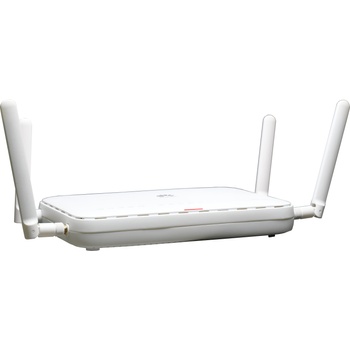

Huawei AR617VW-LTE4EA

HUAWEI 50010564-001 AR617VW-LTE4EA 1xGE COMBO WAN 4xGE LAN 1xVDSL2 2xFXS 1xUSB 2.0 1xLTE Wi-Fi 2.4G+5G




Manufacturer
HUAWEI TECHNOLOGIES

Manufacturer Part No
50010564-001



Marketing Description
Huawei's next-generation NetEngine AR600 series enterprise routers use multi-core processors and a non-blocking switching structure, helping to deliver four times the industry average performance. The NetEngine AR600 also integrates functions such as SD-WAN, cloud management, routing, switching, VPN, and security, ensuring diversified and cloud-based services are fully supported. Huawei NetEngine AR600 series enterprise routers can be deployed at branches of SMBs and small-sized enterprises as required to provide enterprise network egress capabilities.

General

Device Type

Wireless router - 4-port switch (integrated)

Enclosure Type

Desktop, wall-mountable - 1U

Connectivity Technology

Wireless, wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac

Frequency Band

2.4 GHz / 5 GHz

Data Transfer Rate

866 Mbps

Features

Reset button, fanless, 2x2 MIMO technology, battery-backed RTC, dual core CPU

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac

Processor

1.1 GHz

RAM

1 GB

Flash Memory

1 GB

Status Indicators

Power, system, signal strength, WAN, LAN, USB, Internet, VDSL, 5 GHz, 2.4 GHz, FXS line, controller, WWAN

Communications

Type

DSL modem

Digital Signaling Protocol

ADSL, VDSL, ADSL2, ADSL2+, VDSL2

Mobile Communication Protocol

GSM, GPRS, EDGE, WCDMA, HSPA+, DC-HSPA+, FDD LTE, TDD LTE

Generation

4G

Cellular Band

LTE B3, LTE B7, LTE B20, LTE B1, LTE B28, LTE B8, LTE B40, LTE B41, LTE B38, WCDMA B1, WCDMA B8

Protocols & Specifications

ITU G. 992.5, ITU G. 993.2, ITU G. 992.3, ITU G. 992.1

IP Telephony

VoIP Functionality

VoIP phone adapter

Telephony Interfaces

2 phone (FXS)

IP Telephony Features

Dual-Tone Multi-Frequency (DTMF) dialing

Expansion / Connectivity

Interfaces

LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45

USB 2.0: 1 x 4 pin USB Type A

Console: 1 x RS-232

WAN: 1 x VDSL2 / ADSL2+ - RJ-11

Phone line: 2 x FXS - RJ-11

WAN: 1 x 10Base-T/100Base-TX/1000Base-T - LC/PC

Antenna: 2 x RP-SMA - Wi-Fi

LAN / management: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45

Antenna: 2 x SMA - LTE

WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45

Expansion Slots

2 (total) / 2 (free) x Micro-SIM

Aerial

Aerial

External detachable

Antenna Qty

4

Power

Power Device

External power adapter - 24 Watt

Voltage Required

AC 100-240 V (50/60 Hz)

Miscellaneous

MTBF

51,63 years

Dimensions & Weight

Width

24 cm

Depth

16.15 cm

Height

3.8 cm

Weight

690 g

Dimensions & Weight (Shipping)

Shipping Width

37 cm

Shipping Depth

29.7 cm

Shipping Height

9 cm

Shipping Weight

1.31 kg

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

5 - 95% (non-condensing)
