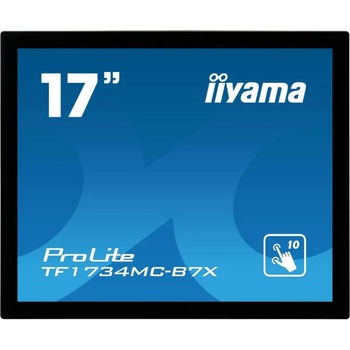

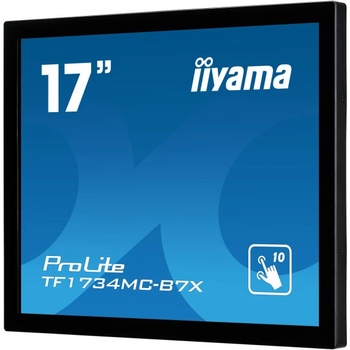

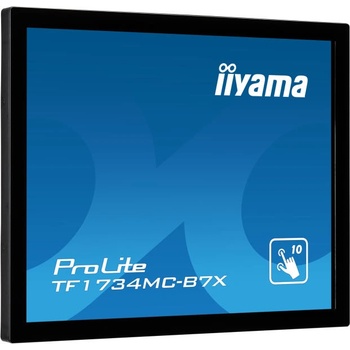

iiyama ProLite TF1734MC-B7X

Design
Open Frame

Diagonal
17", 43cm

Panel
TN LED

Native resolution
1280 x 1024 (1.3 megapixel)

Aspect ratio
5:4

Brightness
350 cd/m2 typical

Brightness
315 cd/m2 with touch

Static contrast
1000:1 with touch

Light transmittance
90%

Response time (BTB)
5ms

Viewing zone
horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°

Colour support
16.7mln 8bit

Horizontal Sync
31.4 - 80kHz

Viewable area W x H
338 x 270.5mm, 13.3 x 10.6"

Pixel pitch
0.264mm

Bezel colour and finish
black, matte



Touch technology
projective capacitive

Touch points
10 (HID, only with supported OS)

Touch method
stylus, finger, glove

Touch interface
USB

Supported operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

Through-Glass
6mm

Palm rejection
yes



Analog signal input
VGA x1

Digital signal input
HDMI x1

DisplayPort x1

HDCP
yes



Extra
anti-fingerprint coating, touch through-glass

Glass thickness
7mm

Water and dust protection
IP65 (front)

OSD key lock
yes

OSD languages
EN, DE, FR, ES, IT, CN, JP

Control buttons
Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power

User controls
picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (color temp. , sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)

Plug&Play
DDC2B
