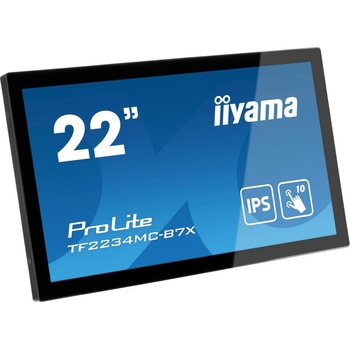

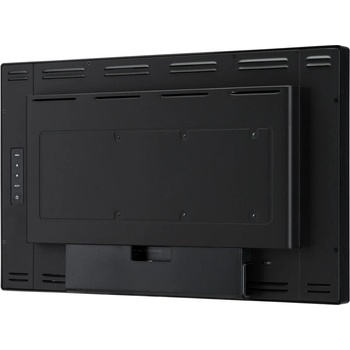

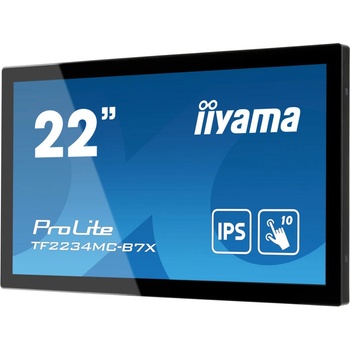

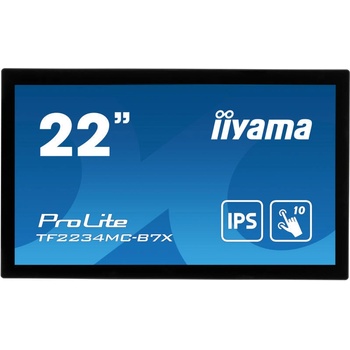

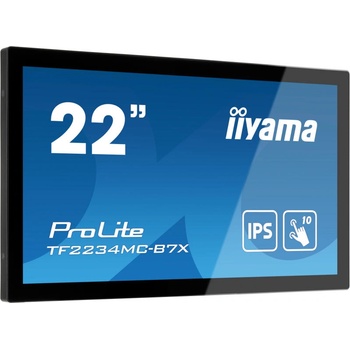

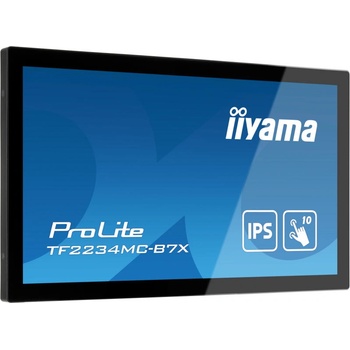

iiyama ProLite TF2234MC-B7X

IIYAMA TF2234MC-B7X

Design
Open Frame

Diagonal
21.5", 54.6cm

Panel
IPS LED

Native resolution
1920 x 1080 (2.1 megapixel Full HD)

Aspect ratio
16:9

Brightness
350 cd/m2 typical

Brightness
305 cd/m2 with touch

Static contrast
1 000:1 with touch

Light transmittance
87%

Response time (GTG)
8ms

Viewing zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support
16.7mln

Horizontal Sync
30 - 84kHz

Viewable area W x H
476.0 x 267.7mm, 18.7 x 10.5"

Pixel pitch
0.247mm

Bezel colour and finish
black, matte



Touch technology
projective capacitive

Touch points
10 (HID, only with supported OS)

Touch method
stylus, finger, glove (latex)

Touch interface
USB

Supported operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

Through-Glass
6mm

Palm rejection
yes

Analog signal input
VGA x1

Digital signal input
HDMI x1

DisplayPort x1

HDCP
yes



Extra
anti-fingerprint coating, touch through-glass

Glass thickness
1.5mm

Glass hardness
7H

Water and dust protection
IP65 (front)

GENERAL

OSD languages
EN, DE, FR, ES, IT, RU, JP, CZ, PL

Control buttons
Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power

User controls
picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (color temp. , sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)

Plug&Play
DDC2B

MECHANICAL

Orientation
landscape, portrait, face-up

VESA mounting
100 x 100mm
