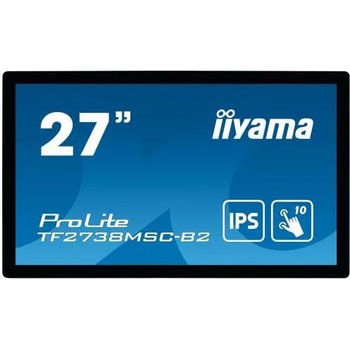

iiyama ProLite TF2738MSC-B2

IIYAMA TF2738MSC-B2

Design
Open Frame

Diagonal
27", 68.6cm

Panel
IPS LED

Native resolution
1920 x 1080 (2.1 megapixel Full HD)

Aspect ratio
16:9

Brightness
500 cd/m2 typical

Brightness
425 cd/m2 with touch

Static contrast
1000:1 typical

Light transmittance
85%

Advanced contrast
12M:1

Response time (GTG)
5ms

Viewing zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support
16.7mln

Horizontal Sync
30 - 80kHz

Viewable area W x H
597.6 x 336.2mm, 23.5 x 13.2"

Bezel width (sides, top, bottom)
24.5mm, 24mm, 24mm

Pixel pitch
0.311mm

Bezel colour and finish
black, matte



Touch technology
projective capacitive

Touch points
10 (HID, only with supported OS)

Touch method
stylus, finger, glove (latex)

Touch interface
USB

Supported operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.



Digital signal input
DVI x1

HDMI x1

DisplayPort x1

Audio output
Speakers 2 x 3W

HDCP
yes



Max. non-stop operating time
16/7

Glass thickness
3.6mm

Glass hardness
6H

60950 Ball drop test
yes

Water and dust protection
IP1X (front)

OSD key lock
yes



OSD languages
EN, DE, FR, CN, RU, JP, NL, PL

Control buttons
Menu, Scroll up/ Audio, Scroll down/ i-Style colour, Select/ Input select, Power

User controls
picture adjust (contrast, brightness, adv. contrast, ECO mode, OD) input select, audio adjust (volume, mute, audio input) colour adjust (cool, normal, warm, user colour, i-Style colour), information, manual image adjust (sharpness, video mode adjust, blue light reducer, X-res technology), setup menu (language select, OSD position, OSD time out, OSD background, opening logo, LED) memory recall

Blue light reducer
yes

Plug&Play
DDC2B

MECHANICAL

Orientation
landscape, portrait, face-up

Fanless design
yes

VESA mounting
100 x 100mm, 200 x 100mm
