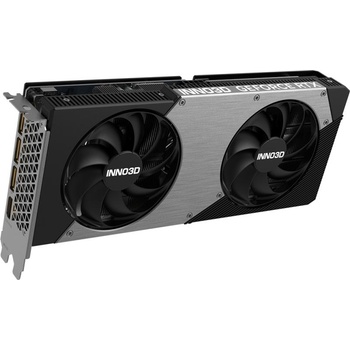

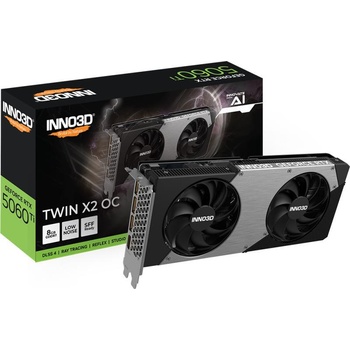

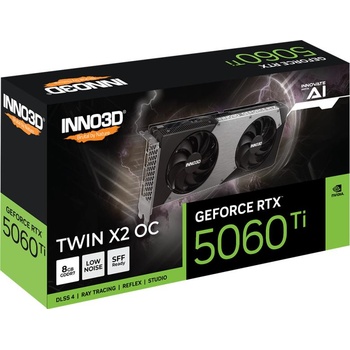

Inno3D GeForce RTX 5060 Ti TWIN X2 OC 8GB GDDR7 128bit (N506T2-08D7X-193075N)

RTX. It’s On.
The Ultimate in Ray Tracing and AI
RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.

NVIDIA DLSS 4
Supreme Speed.
Superior Visuals.
Powered by AI.
DLSS is a revolutionary suite of neural rendering technologies that uses AI to boost FPS, reduce latency, and improve image quality. ‌The latest breakthrough, DLSS 4, brings new Multi Frame Generation and enhanced Ray Reconstruction and Super Resolution, powered by GeForce RTX 50 Series GPUs and fifth-generation Tensor Cores. DLSS on GeForce RTX is the best way to play, backed by an NVIDIA AI supercomputer in the cloud constantly improving your PC’s gaming capabilities. Supreme Speed. Superior Visuals. Powered by AI.

NVIDIA Reflex 2
Compete at Warp Speed
Reflex technologies optimize the graphics pipeline for ultimate responsiveness, providing faster target acquisition, quicker reaction times, and improved aim precision in competitive games. Reflex 2 introduces Frame Warp, which further reduces latency based on the game’s latest mouse input. Compete at Warp Speed

Specifications

GPU Engine Specs:
CUDA Cores
4608
Boost Clock (MHz)
2602MHz
Base Clock (MHz)
2407MHz

Thermal and Power Spec:
Minimum System Power Requirement (W)
650W
Supplementary Power Connectors
1x PCIe 8-pin cables

Memory Specs:
Memory Clock
28Gbps
Standard Memory Config
8GB
Memory Interface
GDDR7
Memory Interface Width
128-bit
Memory Bandwidth (GB/sec)
448 GB/sec

Feature Support:
Real-Time Ray Tracing
Yes
Ray Tracing Cores
4th Generation, 72 TFLOPS
Tensor Cores
5th Generation, 759 AI TOPS
NVIDIA Architecture
Blackwell
Microsoft DirectX
12 Ultimate
NVIDIA DLSS
4
NVIDIA Ansel
Yes
NVIDIA FreeStyle
Yes
Bus Support
PCI Express Gen 5
NVIDIA ShadowPlay
Yes
OS Certification
Windows 11, Linux, FreeBSDx86
NVIDIA Highlights
Yes
NVIDIA G-SYNC-Ready
Yes
Game Ready Drivers
Yes
NVIDIA Studio Drivers
Yes
NVIDIA GPU Boost
Yes
Vulkan API
1.4
OpenGL
4.6
NVIDIA Encoder
1x Ninth Generation
NVIDIA Decoder
1x Sixth Generation

Graphics Card Dimensions:
Length
250mm
Height
116mm
Width
41mm

Display Support:
Multi Monitor
up to 4
Maxmium Digital Resolution
4K at 480Hz or 8K at 165Hz with DSC
HDCP
2.3
Standard Display Connectors
3x DisplayPort 2.1b, 1x HDMI 2.1b
